Zebra

Zebra ZE500 label printer 300 x 300 DPI 305 mm/sec Wired Ethernet LAN

SKU ZE50043-L0E0000Z
£3,210.21
£3,210.21
In stock 59 left

Zebra

Zebra ZE500 label printer 300 x 300 DPI 305 mm/sec Wired Ethernet LAN

SKU ZE50043-L0E0000Z
£3,210.21

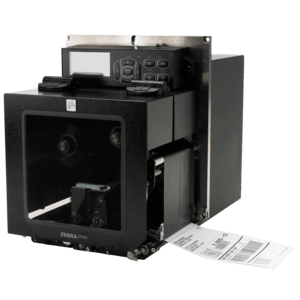

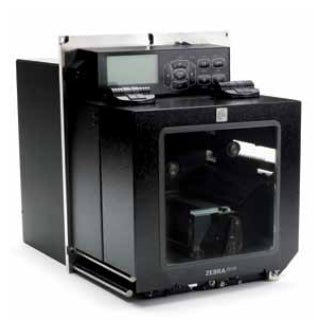

Zebra ZE500 label printer 300 x 300 DPI 305 mm/sec Wired Ethernet LAN

ZE500-4, LH, ZPL, 300dpi, 12dots/mm, 305mm/sec, 104mm (4.1"), 16MB/64MB, USB 2.0, RS-232, Parallel, ZebraNet 10/100, EU+UK PC, Black

Description

ZE500 Print Engines
The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

Used For:
- Cross Docking;
- Receiving/Shipping;
- Compliance Labeling;
- Order Labeling.

The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.

Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.

The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.

Specifications

Print quality
Maximum resolution 300 x 300 DPI
Maximum printing width 10.4 cm
Printing
Print speed 305 mm/sec
Maximum resolution 300 x 300 DPI
Maximum printing width 10.4 cm
Display
Display LCD
Network
Wi-Fi No
Ethernet LAN Yes
Memory
Internal memory 16 MB
Flash memory 64 MB
Paper handling
Ribbon width 10.7 cm
Ribbon length 600 m
Media thickness (imperial) 0.010"
Media thickness 0.254 mm
Maximum roll diameter 10.2 cm
Maximum media length (imperial) 150"
Maximum media length 3.81 m
Maximum label width 11.4 cm
Core diameter 2.54 cm
Ports & interfaces
USB 2.0 ports quantity 1
RS-232 ports 1
RS-232 interface Yes
Parallel ports quantity 1
Connectivity technology Wired
Wi-Fi No
Ethernet LAN Yes
USB port Yes
Performance
Built-in barcodes 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Ribbon width 10.7 cm
Ribbon length 600 m
Processor frequency 133 MHz
Internal memory 16 MB
Flash memory 64 MB
Built-in processor Risc
Certification IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
Page description languages XML, ZPL, ZPL II
Design
Housing material Metal
Display LCD
Product colour Black
Certification IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
Power
Power requirements 90 - 264V AC, 47/63Hz
Technical details
Product colour Black
Built-in barcodes 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Ribbon width 10.7 cm
Ribbon length 600 m
Networking features Fast Ethernet
Maximum label width 11.4 cm
Sustainability certificates ENERGY STAR
Harmonized System (HS) code 84433210
Processor
Processor frequency 133 MHz
Built-in processor Risc
Certificates
Certification IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
Software
Bundled software ZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer
System requirements
Compatible operating systems Windows 7 Windows XP Windows Vista Windows Server 2008 Windows Server 2003
Operational conditions
Storage temperature (T-T) -40 - 160 °F
Storage temperature (T-T) -40 - 71 °C
Storage relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 32 - 104 °F
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 20 - 85%
Weight & dimensions
Width 245 mm
Depth 379 mm
Height 300 mm
Weight 15.4 kg
Packaging content
Bundled software ZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer
Logistics data
Harmonized System (HS) code 84433210
Other features
Networking features Fast Ethernet
