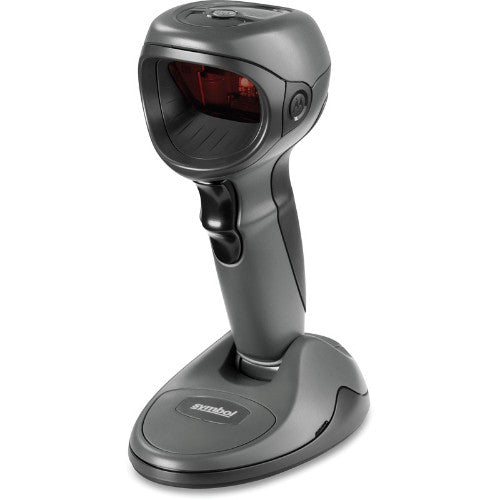

DS9808, Kit: Standard Range, Twilight Black, USB Cable (Series A, 7 ft. Straight) (CBA-U01-S07ZAR)

Description

Achieve a new level of productivity and throughput at the checkout stand with the DS9808. Designed to deliver a new level of versatility, functionality and performance, the DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, it offers the latest scanning technology, delivering record swipe speeds for 1D and 2D bar codes, as well as the ability to capture images and signatures, and read bar codes on mobile phone displays. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.

Innovative hybrid design

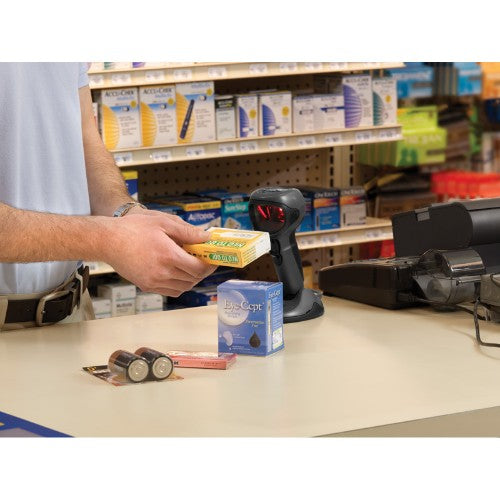

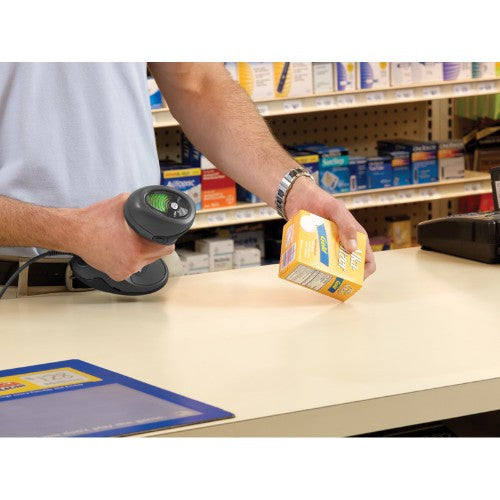

Truly designed for ease of use for both hands-free and handheld scanning; dynamically switches between modes

Comprehensive data capture: 1D, 2D and PDF417 symbologies; image capture; signature capture and RFID
Delivers application flexibility; eliminates need for multiple devices — and associated costs; future proof — built-in support for the applications of tomorrow

EAS compatible
Enables automatic deactivation of EAS security tags

Omni-directional scanning; wide working range, laser aiming pattern
Easy to use; no need to align item and scanner; virtually no training required

Withstands multiple 5 ft./1.5m drops to concrete
Designed to endure the rigors of everyday use for maximum reliability and uptime and a low total cost of ownership

Swipe speed programmable up to 100 inches/254 cm per second
Optimized scanning speed delivers robust performance and accurate capture of a wide variety of bar codes

Flexible working range
Two models to best meet your working range requirements: DS9808-SR up to 10.5 inches/26.7 cm and DS9808-LR up to 18 inches/ 45.7 cm (in handheld mode)

Supports RSM (Remote Scanner Management)
Lowers IT expenses and TCO by enabling remote management from a central location

Multiple on-board interfaces; universal cable compatible
Easy to install; future-proof — today’s scanner can connect to tomorrow’s host

Extra loud beeper
Audible in the loudest environments

Extra large LED indicator
Clearly visible from all scanning positions

Rubberized handle
Provides workers with a comfortable, sure grip

Recessed connector in the base
Minimizes the scanner footprint

Specifications

Scanning
Yaw reading angle -60 - 60°
Wavelength 650 nm
Scanner type 2D
Pitch reading angle -65 - 65°
Ports & interfaces
Standard interfaces USB
Performance
Product colour Black
Certification RoHS
Design
Product colour Black
Certification RoHS
Power
Power consumption 450 mA
Input voltage 5 V
Weight & dimensions
Width 86 mm
Depth 137 mm
Height 203 mm
Weight 340 g
Technical details
Product colour Black
Certification RoHS
Harmonized System (HS) code 84716070
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Harmonized System (HS) code 84716070
