Zebra

Zebra FS40 Fixed bar code reader 1D/2D CMOS Black, Green

SKU FS40-WA20Z4-2C00W
£1,195.48
£1,195.48
Out of stock

Zebra

Zebra FS40 Fixed bar code reader 1D/2D CMOS Black, Green

SKU FS40-WA20Z4-2C00W
£1,195.48

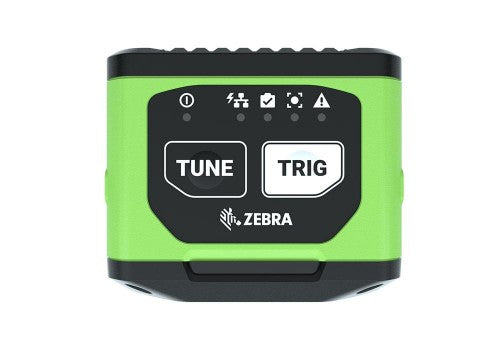

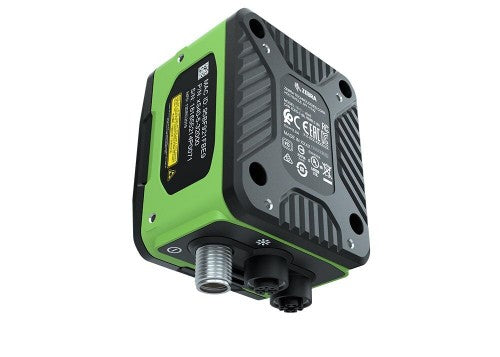

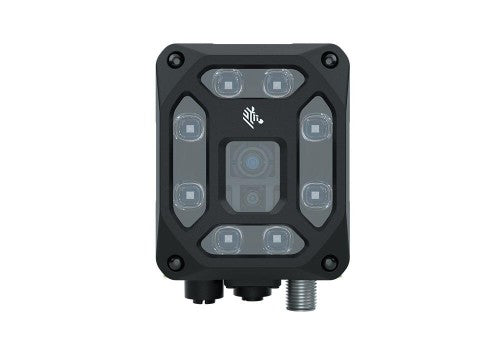

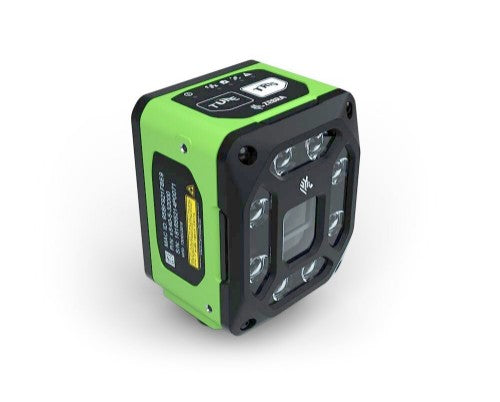

Zebra FS40 Fixed bar code reader 1D/2D CMOS Black, Green

FS40 Fixed Industrial Auto Focus Scanner: Standard Range, 2.3 MP, Fast 2D Barcode Decoder, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Filter - Worldwide

Key Features

  • Configurable I/O and powerful integrated lighting
  • Suitable for Ethernet/IP, PROFINET, CC-Link, Modbus TCP, TCP/IP
  • Available in IP65 and IP67 protection classes
  • Easy to set up, implement and use
  • With powerful and intuitive management software

Description

The Zebra FS40 is a fixed industrial scanner. This industrial scanner is made for automatically reading data on parts, products or packaging moving through a production line at high speed, or in warehousing and fulfillment processes.

Fixed scanner
Deploy the FS40 for tracking and tracing all items in your production or distribution environment in real time. Read up to 16 different images simultaneously for extremely fast data processing! Customize the FS40 to your specific needs by choosing from flexible options such as decode range, lighting, connectivity, power and more. And you can add advanced features with simple software upgrades.

The scanner comes with comprehensive control software that allows you to easily set up, deploy and operate all types of fixed scanners from Zebra. The intuitive interface lets both experienced and novice users navigate smoothly, reducing training and implementation time.

The Zebra FS40 is widely used in production environments for scanning at conveyor belts.

Overhead scanning with the Zebra FS40
But also in warehouses or distribution centers, the Zebra FS40 is an ideal solution for overhead scanning, for example. Instead of using a wireless barcode scanner or wearables, shop floor employees scan goods by holding the barcode in front of the scanner on their workstation. The streamlined and stationary scanning process achieves a higher degree of accuracy. In addition, speed is increased because users are not constantly picking up and putting away a handheld scanner.

Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar, Code 128, Code 93, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Sensor type CMOS
Scanner type 1D/2D
Ports & interfaces
Connectivity technology Wired
Standard interfaces RJ-45
Performance
International Protection (IP) code IP65, IP67
Product colour Black, Green
Design
Type Fixed bar code reader
International Protection (IP) code IP65, IP67
Product colour Black, Green
Power
Power source type DC, PoE
Power consumption (typical) 13 W
Weight & dimensions
Width 64 mm
Depth 91.4 mm
Height 54 mm
Weight 400 g
Technical details
Type Fixed bar code reader
International Protection (IP) code IP65, IP67
Product colour Black, Green
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 5 - 90%

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
