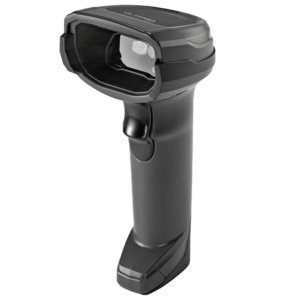

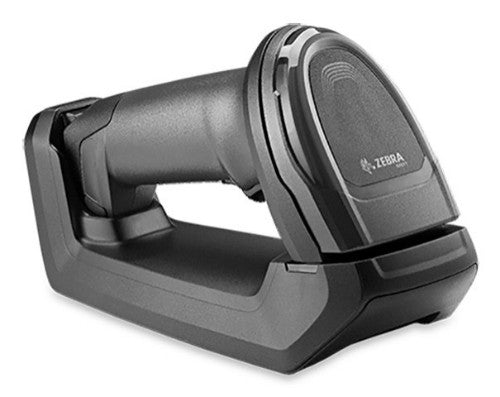

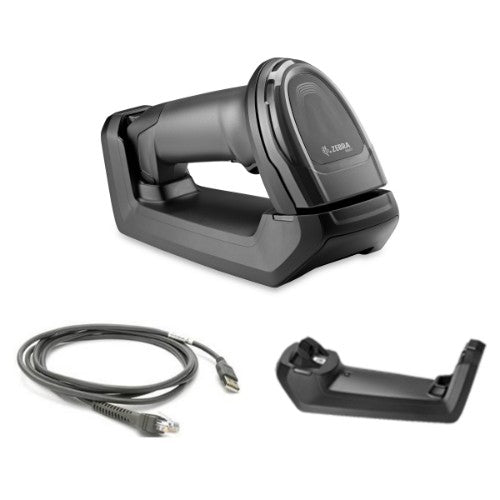

Zebra DS8178 Cordless 1D/2D Handheld Imager, Standard Cradle Kit, 1280 x 960 pixels, Circular 617nm Amber LED, Bluetooth 4.0 BLE, IP42, Twilight Black

DS8178 Cordless 1D/2D Handheld Imager, Standard Cradle Kit, 1280 x 960 pixels, Circular 617nm Amber LED, Bluetooth 4.0 BLE, IP42, Twilight Black

Key Features

• Unprecedented Scanning Performance: The DS8178 is powered by an 800 MHz microprocessor, a high-resolution megapixel sensor, and exclusive Zebra PRZM Intelligent Imaging technology, ensuring fast and accurate capture of difficult barcodes
• Superior Scanning Range: With a scanning range of up to 24 inches (61 cm) and a bright aiming dot, cashiers can quickly scan items—even those in a customer’s cart—without leaving the checkout
• Innovative Power Options: The DS8178 offers interchangeable power sources, including a PowerPrecision+ battery and a PowerCap capacitor, providing flexibility and reducing investment risk. The PowerPrecision+ battery supports over three days of continuous scanning, while the PowerCap capacitor delivers 2,000 scans on a full charge
• Advanced Management: The DS8178 includes tools such as Scan Speed Analytics, which helps identify and correct barcode issues, and a dedicated Power Charge Gauge for easy monitoring of power levels
• Bluetooth Connectivity: Equipped with Bluetooth Version 4.0, the DS8178 ensures reliable wireless communication, with adjustable power settings to minimize interference

Description

The ultimate in performance, innovation and manageability
The final step of a shopping journey is a retailer’s last chance to make a good impression. Whether customers are using curbside pickup or in-store checkout, they expect speed and convenience. With the DS8100 Series handheld imager, you can elevate the customer experience and deliver frictionless transactions at every touchpoint — from cashier manned and self-checkout lanes to curbside and in-store pickup. The DS8100 Series rises above conventional imagers, providing unprecedented scanning performance so cashiers and self-checkout customers can easily scan any barcode the first time, every time. You get a wide range of innovations, including interchangeable power sources — a PowerPrecision+ battery and PowerCapTM capacitor1. And every DS8100 Series imager is engineered with DataCapture DNA, Zebra’s exclusive software ecosystem that simplifies every stage of the scanning experience over the life of your device. Keep checkout lines moving with the DS8100 Series, the ultimate in handheld scanning performance and innovation.

Unprecedented Performance

Unparalleled performance on virtually every barcode in any condition
Only the DS8100 Series combines the power of an 800 MHz microprocessor, the highest sensor resolution in its class and Zebra’s exclusive PRZM Intelligent Imaging technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes — including dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

Superior scan range
A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright “aiming spot” improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer’s shopping cart — without leaving the cash-wrap.

Innovation beyond the barcode
Swappable power options reduce your investment risk
Two interchangeable power options are available to power your devices: a PowerPrecision+ battery or a PowerCap capacitor. You can swap power options at any time on all models, right in your facility — no need to purchase separate battery-free and battery powered devices. And managing your power sources is easy. Since the PowerPrecision+ battery and PowerCap capacitor can report their model and serial numbers, you’ll always know which power source is in each scanner.

On a single charge, the advanced PowerPrecision+ battery provides over three around-the-clock days of continuous scanning, plus a wealth of metrics for better battery management.

The PowerCap capacitor is ideal when the scanner can always be inserted into a charging cradle when not in use. The largest capacitor in its category, the superior PowerCap offers 2,000 scans on a full charge and 100 scans after as little as 35 seconds in the cradle — both metrics are four times the competition.

Dedicated Power Charge Gauge
See at-a-glance if the PowerPrecision+ battery or the PowerCap capacitor are sufficiently charged at the start of a shift.

Prevent downtime with anti-loss tools
With Zebra’s Virtual Tether, both the cradle and scanner will alert users when a device is taken out of range or left out of the cradle for an extended period of time. As a result, you won’t have to worry about a customer accidentally leaving self-checkout with a cordless scanner in their cart or an associate misplacing a scanner in the backroom. And if a DS8178 is lost, simply press the cradle’s paging button to locate it.

Connect+ Contact Technology designed to last
The position of the charging contacts in the DS8100 Series charging cradles combined with Zebra’s exclusive Connect+ Contact Technology assures reliable, corrosion-free charging over the life of the scanner.

Eliminate Bluetooth interference with Wi-Fi Friendly Mode
Only operate on channels that are not shared with your wireless LAN (WLAN), protecting service levels for workers and customers.

Easily capture label data for better inventory management
With Label Parse+, the DS8100 Series can instantly capture and parse GS1 label barcode data on items, enabling associates to easily capture a wealth of data, including expiration dates and lot number/ manufacturing location.

Capture multiple barcodes with one press of the scan trigger
With Multi-Code Data Formatting (MDF), the DS8100 Series can capture multiple barcodes with a single scan and transmit only the barcodes you need, in the order your application expects.

Capture drivers license data (DL version required)
With one press of the scan trigger, cashiers can capture and parse data on drivers licenses to automatically populate a loyalty or credit card application, verify age for age-restricted purchases and more.

Support for the barcode of the future — Digimarc™
The DS8100 Series supports Digimarc digital watermark technology, enabling faster checkouts and easier self-checkout.

Direct Decode Indicator improves productivity
Since the illumination on the barcode flashes to indicate a good decode, associates never need to pause to make sure a barcode was captured correctly.
Unrivaled manageability

Switch workflows in an instant with AutoConfig
Zebra’s AutoConfig cradle automatically configures the DS8178 for your workflow. For example, you can take a DS8178 from self-checkout and use it for a manned lane, customer service, inventory or receiving without having to change settings. Since scanner settings are stored in the cradle base, simply pair the scanner to a different base to automatically configure it for a new host application and use case.

Identify and correct problem barcodes with ScanSpeed Analytics
Only from Zebra, ScanSpeed Analytics provides detailed performance metrics on every barcode captured — enabling you to identify and eliminate poor performing barcodes that slow down your operations.

No-cost tools to meet advanced management needs
With 123Scan, you can easily create configuration barcodes to program scanners. If your imagers are in multiple locations across the country or around the world, with Scanner Management Service (SMS), you can configure and update the firmware for any DS8100 Series device that is plugged into the host — no depot staging or user action is required.

Up-to-the-minute insight into every aspect of your scanners
The logging agent’s Remote Diagnostics capabilities automate the recording of scanner asset information, health and statistics, configuration settings and barcode data — giving you the information needed for event verification, blockchain traceability, pilot site ROI generation, troubleshooting and predictive fleet-wide trend analysis.

Visionary visibility into battery performance metrics
The PowerPrecision+ battery provides a wealth of health information, so you can easily spot and replace aging batteries before battery failures cause checkout delays.

Easy application development
Get everything you need to easily integrate scanning into your business applications with our Scanner Software Development Kits (SDKs) for Windows, Android, iOS and Linux.

Specifications

Scanning
Type	Handheld bar code reader
Optical sensor resolution	1280 pixels
Yaw reading angle	0 - 60°
Working distance	61 cm
Wavelength	617 nm
Tilt reading angle	0 - 360°
Sensor type	Photo diode
Scanner type	1D/2D
Pitch reading angle	0 - 60°
Ports & interfaces
PC connection	RS-232/USB
Wireless range	100 m
Connectivity technology	Wired & Wireless
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Performance
International Protection (IP) code	IP42
Product colour	Black
Design
Type	Handheld bar code reader
International Protection (IP) code	IP42
Product colour	Black
Power
Power source type	Battery
Battery life	83 h
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2500 mAh
Weight & dimensions
Width	66 mm
Depth	107 mm
Height	168 mm
Weight	235.3 g
Technical details
Type	Handheld bar code reader
International Protection (IP) code	IP42
Product colour	Black
PC connection	RS-232/USB
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2500 mAh
Logistics data
Harmonized System (HS) code	84716070
