Zebra

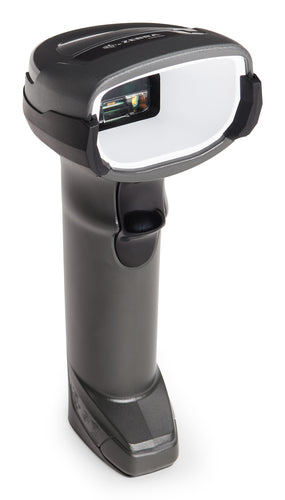

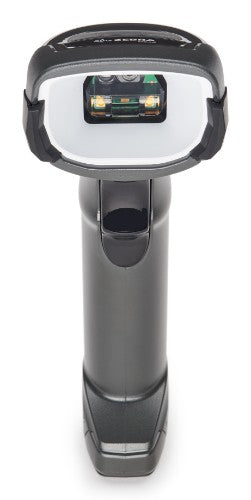

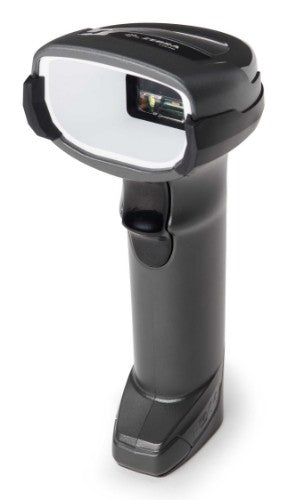

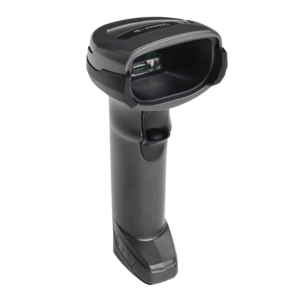

Zebra DS4678-DPE Handheld Scanner

SKU DS4678-DPE0007VZRW
£472.23
£262.32
£472.23
£262.32
Only 20 left

Zebra

Zebra DS4678-DPE Handheld Scanner

SKU DS4678-DPE0007VZRW
£472.23
£262.32
Zebra DS4678-DPE Handheld Scanner

Handheld, LED, 1D/2D, 1280x800, High Density, Direct Part Marks, Area imager, Electronics DPM, cordless, white illumination, Twilight Black, vibration, 13 hours (2,500 mAh), 16.8 x 6.6 x 10.7 cm, 225 g

Key Features

  • Scan Type: 2D, 1D
  • Image Sensor: 1280x800 pixels
  • Scan Range: High Density, Direct Part Marks
  • Corded/Cordless: Cordless
  • Battery Capacity: 13 hours (2,500 mAh)

Description

The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Yaw reading angle -60 - 60°
Tilt reading angle 0 - 360°
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -60 - 60°
Light levels (direct sunlight) 0 - 107000 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Horizontal field of view 31.6°
Vertical field of view 22.6°
Ports & interfaces
Connectivity technology Wireless
Bluetooth version 5.2
Bluetooth Low Energy (BLE) Yes
Standard interfaces Bluetooth
Performance
LED indicators Yes
Built-in processor Yes
Processor frequency 800 MHz
International Protection (IP) code IP52
Product colour Black
Image formats supported BMP, JPEG, TIFF
Vibration function Yes
Light levels (direct sunlight) 0 - 107000 lx
Design
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Power
Power source type Battery
Charging time 2.25 h
Number of reads per charge 50000
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2500 mAh
Weight & dimensions
Width 66 mm
Depth 107 mm
Height 168 mm
Weight 225 g
Technical details
Type Handheld bar code reader
LED indicators Yes
Built-in processor Yes
Processor frequency 800 MHz
International Protection (IP) code IP52
Product colour Black
Warranty period 3 year(s)
Compliance certificates Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Drop resistance 1.8 m
Light levels (direct sunlight) 0 - 107000 lx
