Zebra

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green

SKU DS3678-HD3U4210SFW
£820.57
£820.57
Only 8 left

Zebra

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green

SKU DS3678-HD3U4210SFW
£820.57

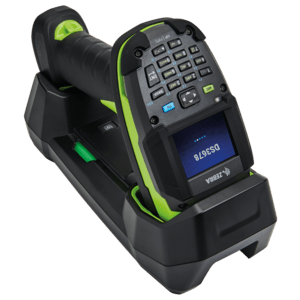

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green

DS3678-HD, 1D/2D Imager, IUID, 655nm laser, 1280 x 960, Two warm white light LED, Bluetooth 4.0 (LE)

Description

UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODES
As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution 1280 pixels
Yaw reading angle -45 - 45°
Wavelength 655 nm
Tilt reading angle -65 - 65°
Sensor type Laser
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Ports & interfaces
Wireless range 100 m
Connectivity technology Wired & Wireless
Bluetooth version 4.0
Bluetooth Low Energy (BLE) Yes
Ethernet LAN Yes
Standard interfaces RS-232, USB, Keyboard wedge
Performance
Programming function Yes
Protection features Dust resistant, Shock resistant, Water resistant
LED indicators Yes
International Protection (IP) code IP67
Product colour Black, Green
Design
Type Handheld bar code reader
Protection features Dust resistant, Shock resistant, Water resistant
LED indicators Yes
International Protection (IP) code IP67
Product colour Black, Green
Power
Power source type Battery
Number of reads per charge 100000
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 3100 mAh
Weight & dimensions
Width 142 mm
Depth 76 mm
Height 185 mm
Weight 411 g
Technical details
Type Handheld bar code reader
Protection features Dust resistant, Shock resistant, Water resistant
LED indicators Yes
International Protection (IP) code IP67
Product colour Black, Green
Programming function Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Network
Ethernet LAN Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Harmonized System (HS) code 84716070
