Zebra

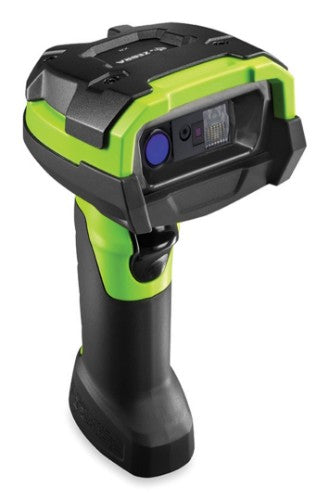

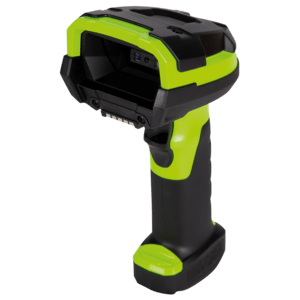

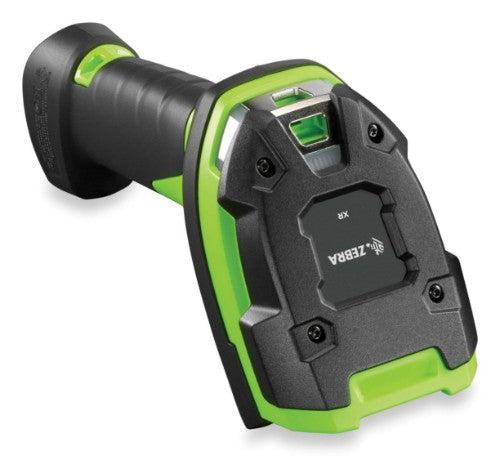

Zebra DS3608-XR Handheld bar code reader 1D/2D Laser Black, Green

SKU DS3608-XR3RF50AZVW
£749.10
£749.10
Only 8 left

Zebra

Zebra DS3608-XR Handheld bar code reader 1D/2D Laser Black, Green

SKU DS3608-XR3RF50AZVW
£749.10
Zebra DS3608-XR Handheld bar code reader 1D/2D Laser Black, Green

1D/2D, 520 nm laser, 1280x800, 2x LEDs 2700K, Ethernet, USB, RS232

Description

DS3600-XR Ultra-Rugged Scanner
Unstoppable performance now with the industry’s longest scanning range

When tasks get tougher, you need a scanner that’s ready for the job. The DS3600-XR sets a new standard in extended range performance, enabling workers to scan faster, farther and more accurately than ever before. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x — while decreasing device weight by 10%. The DS3600-XR delivers an edge over the competition for both rapidly proliferating 2D barcodes and traditional 1D. It seamlessly reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m — nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions. The DS3600-XR is virtually indestructible with a best-in-class 10 ft./3 m drop spec to concrete. Superior cordless technology makes it easier for your workers to use and manage their cordless scanners. And Zebra DataCapture DNA takes scanner performance far beyond the basics.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Yaw reading angle -360 - 360°
Wavelength 520 nm
Tilt reading angle -60 - 60°
Sensor type Laser
Scanner type 1D/2D
Pitch reading angle -60 - 60°
Optical sensor resolution (W x H) 1280 x 800 pixels
Ports & interfaces
Connectivity technology Wired
Ethernet LAN Yes
Standard interfaces Keyboard wedge, RS-232, USB
Performance
Programming function Yes
Protection features Water resistant
LED indicators Yes
International Protection (IP) code IP67
Product colour Black, Green
Print contrast 25%
Design
Type Handheld bar code reader
Protection features Water resistant
LED indicators Yes
International Protection (IP) code IP67
Product colour Black, Green
Power
Power source type Battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 3100 mAh
Weight & dimensions
Width 132 mm
Depth 76 mm
Height 185 mm
Weight 308 g
Technical details
Type Handheld bar code reader
Protection features Water resistant
LED indicators Yes
International Protection (IP) code IP67
Product colour Black, Green
Programming function Yes
Compliance certificates RoHS
Packaging data
External power adapter Yes
Network
Ethernet LAN Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -30 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Drop resistance 2.4 m
Packaging content
External power adapter Yes
