Zebra

Zebra DS3608-DPA Handheld bar code reader 1D/2D Laser Black, Grey

SKU DS3608-DPA0002VZWW
£1,585.19
£1,201.98
£1,585.19
£1,201.98
Only 6 left

Zebra

Zebra DS3608-DPA Handheld bar code reader 1D/2D Laser Black, Grey

SKU DS3608-DPA0002VZWW
£1,585.19
£1,201.98

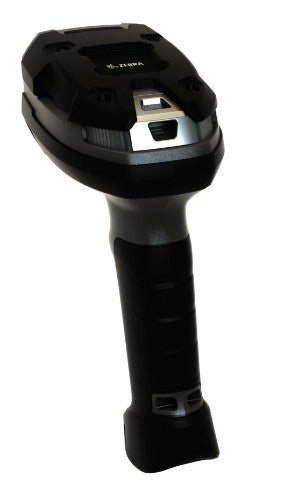

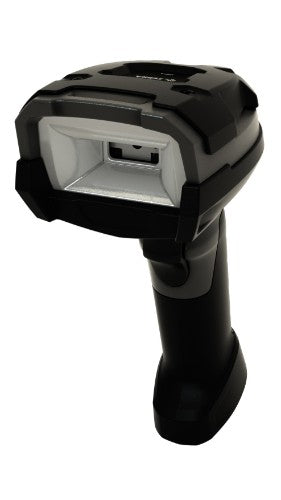

Zebra DS3608-DPA Handheld bar code reader 1D/2D Laser Black, Grey

1D, 2D, IUID, 655 nm laser, USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP, Gray / Black

Description

UNSTOPPABLE PERFORMANCE FOR SUPERIOR EASE OF USE
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get an advanced illumination system that ensures the capture of every direct part mark on the first try, including direct part marks that are very low contrast or printed on shiny, reflective surfaces. And Zebra Network Connect for Automation delivers a seamless connection between DS3608-DPA/DS3678-DPA scanners and your Industrial Ethernet network without additional third party equipment - reducing complexity and eliminating a point of failure.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C., UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Yaw reading angle 0 - 65°
Wavelength 655 nm
Tilt reading angle 0 - 360°
Sensor type Laser
Scanner type 1D/2D
Pitch reading angle 0 - 65°
Light levels (direct sunlight) 0 - 108000 lx
Optical sensor resolution (W x H) 1280 x 960 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces Keyboard wedge, RS-232, USB
Performance
LED indicators Yes
International Protection (IP) code IP65
Product colour Black, Grey
Certification RoHS EN 50581: 2012
Buzzer Yes
Light levels (direct sunlight) 0 - 108000 lx
Design
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP65
Product colour Black, Grey
Certification RoHS EN 50581: 2012
Power
Power source type RS-232, USB
Input voltage 4.5 - 5.5 V
Weight & dimensions
Width 77 mm
Depth 132 mm
Height 185 mm
Weight 304 g
Technical details
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP65
Product colour Black, Grey
Certification RoHS EN 50581: 2012
Buzzer Yes
Harmonized System (HS) code 84716070
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -30 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 108000 lx
Logistics data
Harmonized System (HS) code 84716070
