Zebra

Zebra DS2208 Handheld bar code reader 1D/2D LED White

SKU DS2208-SR6U2100AZW
£139.36
£75.19
£139.36
£75.19
In stock 46 left

Zebra

Zebra DS2208 Handheld bar code reader 1D/2D LED White

SKU DS2208-SR6U2100AZW
£139.36
£75.19

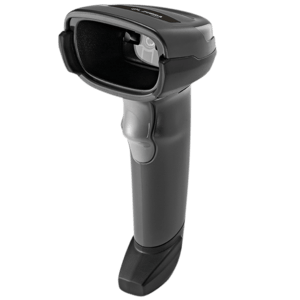

Zebra DS2208 Handheld bar code reader 1D/2D LED White

SR, 2D, 645nm, 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Wired, USB/RS-232/RS-485/Keyboard Wedge

Description

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Yaw reading angle -65 - 65°
Wavelength 645 nm
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Optical sensor resolution (W x H) 640 x 480 pixels
Ports & interfaces
Connectivity technology Wired
Cable length 10 m
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Performance
LED indicators Yes
Housing material Plastic
International Protection (IP) code IP42
Product colour White
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Design
Type Handheld bar code reader
LED indicators Yes
Housing material Plastic
International Protection (IP) code IP42
Product colour White
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Power
Power consumption 250 mA
Power source type DC
Battery life 100 h
Input voltage 5.5 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2400 mAh
Weight & dimensions
Width 66 mm
Depth 99 mm
Height 165 mm
Weight 161.6 g
Technical details
Type Handheld bar code reader
LED indicators Yes
Housing material Plastic
International Protection (IP) code IP42
Product colour White
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Charging base No
Cables included Micro-USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Charging base No
Cables included Micro-USB
Logistics data
Harmonized System (HS) code 84716070
