Zebra

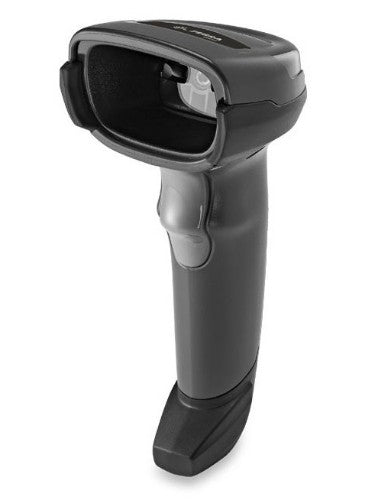

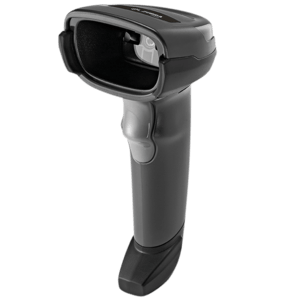

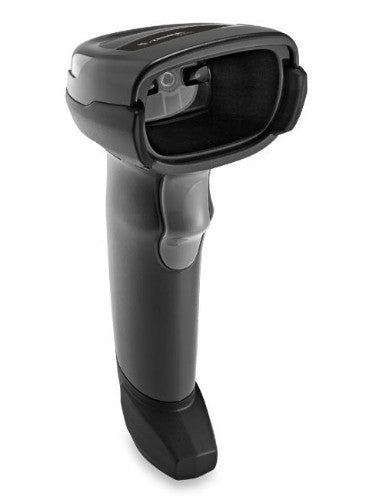

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

SKU DS2208-SR7U2100AZW
£136.90
£74.44
£136.90
£74.44
In stock 2715 left

Zebra

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

SKU DS2208-SR7U2100AZW
£136.90
£74.44
Zebra DS2208 Handheld bar code reader 1D/2D LED Black

DS2208, USB-kit, SR, 1D/2D, 645nm, Roll 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Black, Wired, USB/RS-232/RS-485/Keyboard Wedge

Description

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Motion tolerance (cm/s) 13
Yaw reading angle -65 - 65°
Working distance 36.8 cm
Wavelength 645 nm
Tilt reading angle -65 - 65°
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Optical sensor resolution (W x H) 640 x 480 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Performance
LED indicators Yes
International Protection (IP) code IP42
Product colour Black
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Design
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP42
Product colour Black
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Power
Power consumption 250 mA
Power source type DC
AC adapter output voltage 5 V
Weight & dimensions
Width 66 mm
Depth 99 mm
Height 165 mm
Weight 161.6 g
Technical details
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP42
Product colour Black
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Charging base No
Cables included Micro-USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Charging base No
Cables included Micro-USB
Logistics data
Harmonized System (HS) code 84716070

Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated. Note: Products do not come with cables or accessories unless specifically stated.
