Unitech

Unitech MS822B Handheld bar code reader 1D/2D CMOS Black

SKU MS822-2UBU02-SG
£147.37
£147.37
In stock 32 left

Unitech

Unitech MS822B Handheld bar code reader 1D/2D CMOS Black

SKU MS822-2UBU02-SG
£147.37
Unitech MS822B Handheld bar code reader 1D/2D CMOS Black

CMOS, 60 fps/s, 1280 x 800 px, 1D / 2D, 2.4G, IP52, 1.5 m drop

Key Features

  • Support most 1D / 2D barcodes on mobile screens: up to 3 mil resolutions
  • Support 2.4G wireless technology
  • 2.4G wireless transmission range up to 100m in the line of open sight
  • Up to 40 hours of operation time per a fully charged battery
  • Rugged design: IP52 and 1.5 m drop spec
  • Offline inventory with 4 MB Memory flash

Description

Utilizing a megapixel 2D barcode scanning engine and the freedom of wireless technology, the MS822B offers highly accurate performance and affordable price for the demands of a wide range of market applications, such as point-of-sale, loyalty, coupons checking, personal data identification, inventory control, and field service sectors.

Multi-Interface Flexibility with 2.4G, Bluetooth, and USB-C

The MS822B wireless 2D scanner not only provides outstanding 1D and 2D barcode scanning capabilities but also excels in connectivity flexibility with support for 2.4G, Bluetooth, and USB-C interfaces. Whether maintaining a connection up to 100 meters away from the base with the 2.4G USB cradle receiver or choosing the best interface for specific tasks, this versatility enables users to customize their scanner setup to meet diverse operational demands, ensuring optimal efficiency in any environment.

Plug-And-Play Connectivity

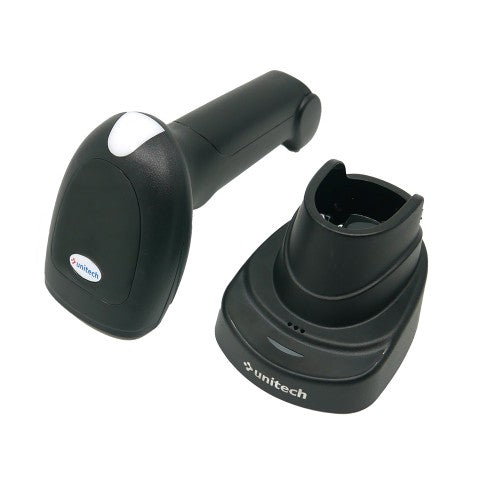

The MS822B scanner is uniquely designed with a cradle featuring a built-in dongle, pre-paired before shipping for a plug-and-play experience right out of the box. This immediate connectivity extends to any mobile devices or computers, enhancing usability across multiple devices. Ideal for inventory control in retail and warehousing, the MS822B ensures efficient data management even when out of range. It automatically stores scanned barcodes and seamlessly transmits the data back to the host once within wireless coverage.

Long-Lasting Battery for All Day

With a long-lasting 2600 mAh removable battery, the MS822B can continue to capture barcodes for 40 hours, supporting all-day operation and featuring an easy battery-replaced design while reducing the total cost of ownership.

Compact but Durable

While sustaining a 1.5-meter drop to concrete, MS822B incorporated with IP52 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees continuous productivity for the best reliability.

ScanBridge Windows – The Best Companion Software to Your Unitech Scanners

✔ Quick Setup, Easy Integration, and Auto Configuration: Effortlessly connect wireless scanners and automatically configure settings with ScanBridge, reducing initial setup time and enabling immediate use.

✔ Advanced Data Handling: Offers diverse output options, including Keyboard Wedge for keystroke data entry and Network Wedge for sending data directly to network services, facilitating efficient and adaptable data management.

✔ Customizable Profile Management: Create and manage tailored scanner profiles for specific applications, optimizing scanner performance across different scenarios and maximizing operational efficiency.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 32, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, GS1-128 (UCC/EAN-128), Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Wavelength 625 nm
Tilt reading angle 65 - 65°
Sensor type CMOS
Scanner type 1D/2D
Read rate (max) 60 reads/s
Pitch reading angle 65 - 65°
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Depth of field range 5 cm
Ports & interfaces
Wireless range 100 m
Connectivity technology Wired & Wireless
Bluetooth version 4.2
Standard interfaces Bluetooth, RF Wireless, USB
Performance
LED indicators Yes
International Protection (IP) code IP52
Internal memory 4 MB
Product colour Black
Certification CE, FCC, BSMI, VCCI, NCC, TELEC, BQB
Light levels (direct sunlight) 0 - 100000 lx
Design
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Certification CE, FCC, BSMI, VCCI, NCC, TELEC, BQB
Power
Power consumption 290 mA
Battery life 40 h
Charging time 6 h
Input voltage 5 V
Battery capacity 2600 mAh
Charging port type USB Type-C
Weight & dimensions
Base dimensions (WxDxH) 106 x 80.5 x 70 mm
Width 72 mm
Depth 96.5 mm
Height 161 mm
Weight 180 g
Technical details
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP52
Internal memory 4 MB
Product colour Black
Certification CE, FCC, BSMI, VCCI, NCC, TELEC, BQB
Warranty period 3 year(s)
Compliance certificates BSMI, CE, Federal Communications Commission (FCC), VCCI
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) -10 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Drop resistance 1.5 m
Light levels (direct sunlight) 0 - 100000 lx
