TSC

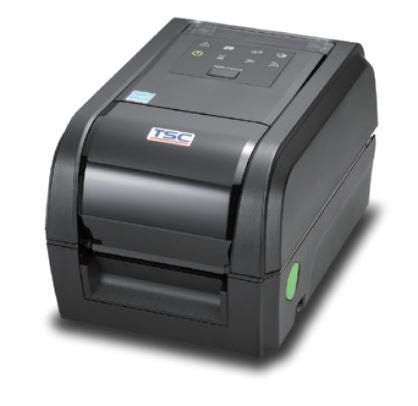

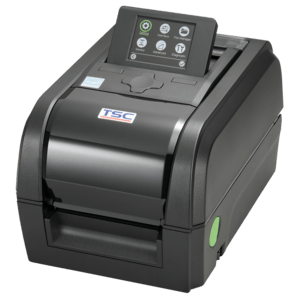

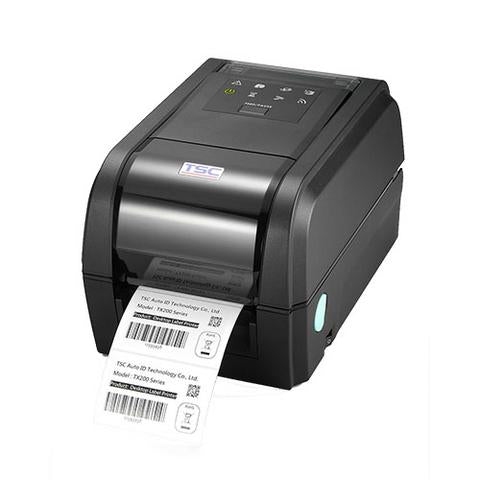

TSC TX310 label printer Direct thermal / Thermal transfer 300 x 300 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU TX310-A001-1302
£499.49
£499.49
Only 6 left

TSC

TSC TX310 label printer Direct thermal / Thermal transfer 300 x 300 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU TX310-A001-1302
£499.49
TSC TX310 label printer Direct thermal / Thermal transfer 300 x 300 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

TX310 12 dots/mm (300 dpi), TSPL-EZ, USB, USB Host, RS232, Ethernet

Description

The TX Series of thermal transfer desktop barcode can support a variety of printing applications to meet your needs. With three models available, the 4-inch wide TX Series can address everything from higher volume 4x6 shipping labels, higher resolution product marking and graphic solutions, to high resolution labels used in electronics marking applications.

Models in the TX Series include:

- TX210 – 203 dpi resolution with print speeds up to 8 ips
- TX310 – 300 dpi resolution with print speeds up to 6 ips
- TX610 – 600 dpi printer featuring precise calibration and registration required for printing the smallest labels

The TX series is the culmination of TSC's 23 years of designing high-performance and durable desktop printers. The printers use a large 300-meter ribbon supply on a one inch core that saves both time and money. The TX Series features a user-friendly spring-loaded center-biased clamshell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter long ribbon.

Standard interfaces include USB 2.0, USB-A Host, 10/100 Mbps Ethernet and Serial connectivity. Optional communications interfaces include Bluetooth, 802.11a/b/g/n Wi-Fi and Centronics Parallel. Printer options include a bright, color LCD display, label peel and present, and cutter.

As with all TSC printers, the TX Series features the TSPL-EZ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.

- Business/Office
- Product Marking
- Compliance Labeling
- Asset Tracking
- Document Management
- Shelf-Labeling
- Shipping/Receiving
- Specimen Labeling
- Inventory Control
- Patient Tracking

Specifications

Print quality
Maximum resolution 300 x 300 DPI
Maximum printing width 10.6 cm
Printing
Print speed 152 mm/sec
Maximum resolution 300 x 300 DPI
Maximum printing width 10.6 cm
Print technology Direct thermal / Thermal transfer
Number of printable dots 12 dot
Display
Colour display Yes
Display LCD
Network
Wi-Fi Yes
Ethernet LAN Yes
Memory
Internal memory 128 MB
Flash memory 128 MB
Paper handling
Ribbon width 11 cm
Ribbon length 300 m
Media thickness 0.055 - 0.254 mm
Ports & interfaces
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
RS-232 ports 1
Connectivity technology Wired & Wireless
Bluetooth Yes
Wi-Fi Yes
Ethernet LAN Yes
USB port Yes
Performance
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 300 m
Internal memory 128 MB
Flash memory 128 MB
Built-in processor Yes
Page description languages DPL, EPL, TSPL-EZ, ZPL, ZPL II
Tape end detection Yes
Open cover detection Yes
Design
Colour display Yes
Display LCD
Product colour Black
Control type Buttons
Built-in display Yes
Power
AC adapter output voltage 24 V
AC adapter output current 3.75 A
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Product colour Black
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 300 m
Sustainability certificates ENERGY STAR
Warranty period 2 year(s)
Compliance certificates BIS, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UL, WEEE, cUL
Processor
Built-in processor Yes
Software
Bundled software Windows labeling software CD
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 25 - 85%
Weight & dimensions
Width 226 mm
Depth 332 mm
Height 198 mm
Weight 1.8 kg
Packaging content
Cables included AC, USB
Bundled software Windows labeling software CD
Other features
Warranty period 2 year(s)
