TSC

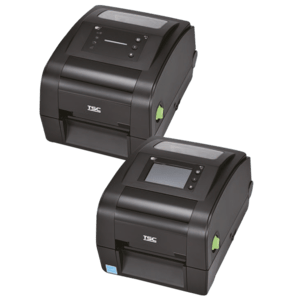

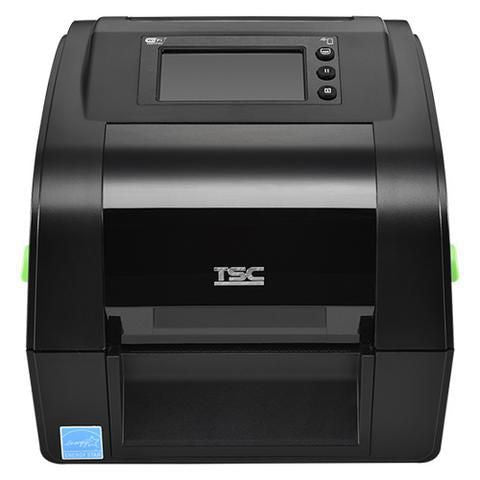

TSC TH240T label printer Direct thermal / Thermal transfer 203 x 203 DPI 203 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU TH240-A001-0002
£326.80
£326.80
Only 7 left

TSC

TSC TH240T label printer Direct thermal / Thermal transfer 203 x 203 DPI 203 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU TH240-A001-0002
£326.80
TSC TH240T label printer Direct thermal / Thermal transfer 203 x 203 DPI 203 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

Thermal Transfer Label Printer (Healthcare), 203 dpi, Color Touch LCD, DRAM 128MB / Flash 128MB, Buzzer, 8 dots/mm, RTC, USB, USB Host, RS232, Ethernet, kit (USB)

Description

Seamless Integration, Effortless Deployment

- Out-of-the-box auto-switch print language emulation
- User-friendly and convenient label printing with TSC Standalone Creator and TSCPRTGo

Minimising Downtime, Maximising Uptime

- Real-time remote printer monitoring and management with the Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect
- Downtime prevention with self-diagnostic TPH Care, TPH (thermal printhead) maintenance, and ribbon low warning
- User-friendly design: self-diagnostics, toolless TPH and platen roller replacement for easy maintenance, and shortcut buttons for enhanced efficiency
- Supports network security configurations: HTTPS, SNMPv3, 802.1X, and TCP/IP Port 9100 filter

Versatile, Future-Proof Print Quality

- 15mm to 120mm wide media width for diverse media types, optional narrow media adaptors support the narrow label width to 10mm
- High-precision print quality with innovative label stabilising media damper and adjustments in vertical DPI, heater line, and TPH pressure
- Supports UTF-8 TTF (TrueType Font) for different language label content printing
- Addable future-proof upgrades: Wi-Fi, Bluetooth, cutter module, peeler module, care label cutter kit, linerless tear-off kit, and linerless cutter kit

Environmentally Sustainable Printer

- 100% recyclable packaging with FSC-compliant cartons
- 100% recyclable plastic printer casing made with 30% recycled plastic
- 90%+ of printer components are recyclable

Healthcare Tailored Design

- Crisp white and bright full-colour scheme, perfectly suited for healthcare environments
- Antimicrobial, easy-to-disinfect casing for effortless cleaning, vastly reducing the risk of contamination
- IEC 60601-1 Medical-Grade Compliant Power Supply, ensuring safe and reliable use in healthcare facilities

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Printing
Colour No
Print speed 203 mm/sec
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Print technology Direct thermal / Thermal transfer
Number of printable dots 8 dot
Display
Display diagonal 8.89 cm (3.5")
Colour display Yes
Display resolution 480 x 320 pixels
Display LCD
Network
Wi-Fi Yes
Ethernet LAN Yes
Memory
Internal memory 128 MB
Flash memory 128 MB
Paper handling
Supported paper width 15 - 120 mm
Ribbon width 11 cm
Ribbon length 300 m
Maximum roll diameter 12.7 cm
Maximum label length 25.4 m
Ports & interfaces
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
RS-232 ports 1
Connectivity technology Wired & Wireless
Bluetooth version 5.0
Bluetooth Yes
Wi-Fi Yes
Ethernet LAN Yes
USB port Yes
Performance
Built-in barcodes 1D, 2D, AZTECCODE, China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 300 m
Internal memory 128 MB
Flash memory 128 MB
Built-in processor Yes
Page description languages DPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II
Tape end detection Yes
Open cover detection Yes
Design
Display diagonal 8.89 cm (3.5")
Colour display Yes
Display resolution 480 x 320 pixels
Display LCD
Product colour Black
Control type Buttons, Touch
Built-in display Yes
Power
AC adapter output voltage 24 V
AC adapter output current 3.75 A
Power consumption (printing) 90 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Product colour Black
Built-in barcodes 1D, 2D, AZTECCODE, China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 300 m
Maximum label length 25.4 m
Warranty period 2 year(s)
Compliance certificates China RoHS, REACH, RoHS, WEEE
Processor
Built-in processor Yes
Operational conditions
Storage temperature (T-T) 10 - 90 °C
Storage relative humidity (H-H) 25 - 85%
Operating temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 0 - 45%
Weight & dimensions
Width 223 mm
Depth 286 mm
Height 186 mm
Weight 2.8 kg
Packaging content
Cables included AC, USB
Other features
Warranty period 2 year(s)
