203 dpi, LCD Display, ARM Cortex-A9, 512 MB RAM / 128 MB Flash, USB, RS-232, Ethernet, Wi-Fi
Description

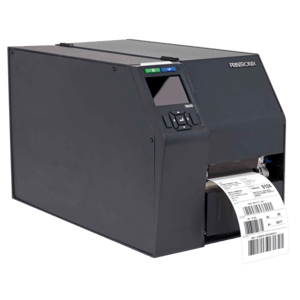

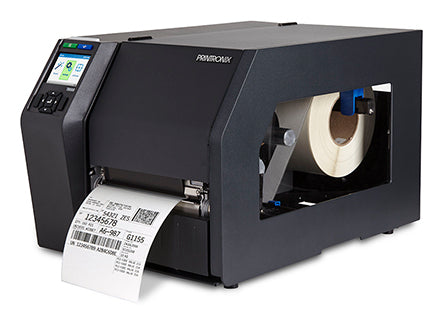

T8000 Series 6-Inch Enterprise Industrial PrintersOur most versatile 24/7/365 printer with 6-inch print width, the T8000 Series features color display, multi-connectivity capability with optional ODV-2D inline barcode verifier technology.
The T8000 Series industrial barcode label printers have a reliable, powerful, and a proven design that exceeds the requirements of the most demanding mission-critical manufacturing and distribution operations.
The T8000 is the premier high-end thermal printer.
With unmatched industrial performance, ease of use, and 100% verifiable output, the T8000 exceeds the requirements of the most demanding mission-critical manufacturing and distribution operations. Highlights of the T8000 include:
Easy-To-Use- New 3.5-inch full-color display panel with easy to use navigation keys
- Most extensive library of print emulations in the industry, including Postscript/PDF printing
- Intuitive printer setup, print quality, and self-help wizard
- Quick Change Memory Card stores printer configuration and network settings for easy installation of new printers
Industrial Performance- Seamless integration & connectivity with robust remote printer management
- 40% faster print speed, 6x faster processing speed, and 8x more memory than the competition
- Rugged design for the most demanding global customers and the harshest environments
- Energy Star compliant
Verifiable Output- ODV-2D is our advanced Online Barcode Data Verification solution and available as an option on the T8000. ODV Technology reads each barcode as it is printed, grades each barcode, strikes-over rejected barcodes, and automatically prints a new label.
- Printronix Auto ID Data Manager (part of the PrintNet Enterprise Suite) gives you the ability to dynamically capture statistics that can be used as certification stamp and audit
- Eliminates compliance fines and returned shipments with 100% accurate barcodes, 100% of the time.
Specifications
| Print quality |
|---|
| Vertical printing |
Yes |
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
16.8 cm |
| Printing |
|---|
| Rotated printing |
Yes |
| Minimum print length |
6.35 mm |
| Text alignment |
Center, Justify, Left, Right |
| Text style |
Bold, Invert, Normal, Outline, Underline |
| Colour |
No |
| Vertical printing |
Yes |
| Print speed |
1339 lpm |
| Print speed |
305 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
16.8 cm |
| Print technology |
Direct thermal / Thermal transfer |
| Display |
|---|
| Display diagonal |
10.2 cm (4") |
| Colour display |
Yes |
| Backlight display |
Yes |
| Display |
LCD |
| Network |
|---|
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Memory |
|---|
| Internal memory |
512 MB |
| Flash memory |
128 MB |
| Paper handling |
|---|
| Supported paper width |
50.8 - 172.7 mm |
| Ribbon width |
17.3 cm |
| Ribbon length |
625 m |
| Media thickness |
0.00635 - 0.254 mm |
| Maximum roll diameter |
20.9 cm |
| Maximum label width |
17.3 cm |
| Maximum label length |
2.515 m |
| Core diameters supported |
38.1 mm (1.5"), 76.2 mm (3") |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Connectivity technology |
Wired |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| USB port |
Yes |
| Performance |
|---|
| Built-in barcodes |
1D, AZTECCODE, BC-412, Code 11, Code 35, Code 39, Code 93, Code-128 Codabar Library, Datamatrix, FIM, GS1 DataBar, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, Matrix 2/5, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, USPS Intelligent Mail |
| Security algorithms |
EAP-TLS, EAP-TTLS, PEAP, WEP, WPA-PSK, WPA2-PSK |
| Ribbon width |
17.3 cm |
| Ribbon length |
625 m |
| Internal memory |
512 MB |
| Image formats supported |
BMP, PCX, PNG, TIF, TIFF |
| Flash memory |
128 MB |
| Built-in RFID module |
Yes |
| Built-in processor |
Yes |
| Page description languages |
DPL, EPL, EPL2, IPL, PJL, ZPL, ZPL II |
| Typestyles supported |
Bold, Double height, Double width, Emphasised, Enhanced, Italics, Outline, Superscript, Underline |
| Bitmap fonts |
Courier, Gothic, OCR-A, OCR-B |
| Open cover detection |
Yes |
| Character spacing |
Normal |
| Design |
|---|
| Display diagonal |
10.2 cm (4") |
| Colour display |
Yes |
| Backlight display |
Yes |
| Display |
LCD |
| Product colour |
Black |
| Control type |
Buttons |
| Built-in display |
Yes |
| Power |
|---|
| AC input voltage |
90 - 264 V |
| AC input frequency |
48 - 62 Hz |
| USB port voltage |
5 V |
| USB port current |
0.5 A |
| Power source type |
AC |
| Technical details |
|---|
| Product colour |
Black |
| Built-in barcodes |
1D, AZTECCODE, BC-412, Code 11, Code 35, Code 39, Code 93, Code-128 Codabar Library, Datamatrix, FIM, GS1 DataBar, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, Matrix 2/5, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, USPS Intelligent Mail |
| Ribbon width |
17.3 cm |
| Ribbon length |
625 m |
| Maximum label width |
17.3 cm |
| Maximum label length |
2.515 m |
| Image formats supported |
BMP, PCX, PNG, TIF, TIFF |
| Built-in RFID module |
Yes |
| Processor |
|---|
| Built-in processor |
Yes |
| Security |
|---|
| Security algorithms |
EAP-TLS, EAP-TTLS, PEAP, WEP, WPA-PSK, WPA2-PSK |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-5 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
|---|
| Width |
340.4 mm |
| Depth |
520.7 mm |
| Height |
330.2 mm |
| Weight |
18.1 kg |
