TSC

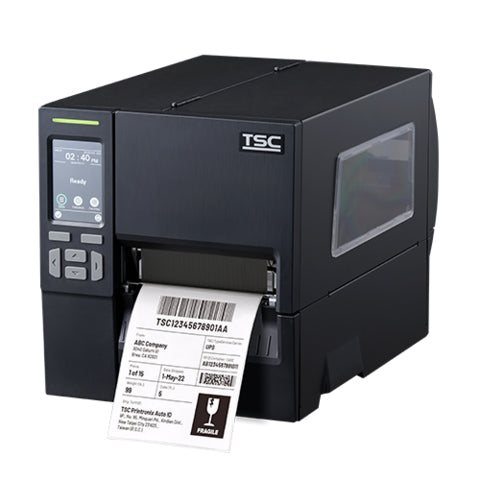

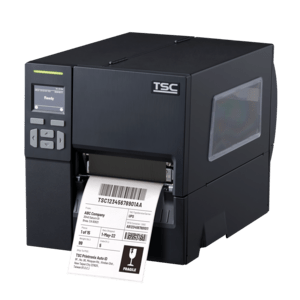

TSC MB241T label printer Direct thermal / Thermal transfer 203 x 203 DPI 304.8 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU MB241T-A001-0202
£636.59
£636.59
In stock 298 left
Download spec sheet (PDF)

203 dpi, 304.8 mm/s, DRAM 256 MB/Flash 256 MB, USB, Wi-Fi, EU EMEA

Description

The MB Series industrial label printers are value leaders for 4-inch-wide thermal printing. The all-metal print mechanism of MB Series guarantees durability in high-volume printing. The MB Series handles special media types like harder and thicker hangtags and is available with a wide range of optional accessories to support diverse applications. These accessories include linerless, peel-off and RFID upgrade kits, an internal rewinder, and a cutter, all designed to enhance functionality and meet dynamic business demands. They are ideal for limited space and excel in print quality and versatility, making them an outstanding choice for various printing needs. Notably, the MB241 Series Linerless has received the prestigious Red Dot Award: Product Design 2025 in recognition of its forward-thinking approach to modern design, including its sustainability-driven features.

The printer capabilities are designed with auto-switching emulation for hassle-free deployment. TSC Standalone Creator generates a printer LCD UI for quick template access, while TSCPRTGo acts as an extended display for mobile printing. SOTI Connect, TSC Console, and the Internal Embedded Webpage enable remote fleet management.

The newly introduced MB241 Series boasts the bifold media door, cutting operational space requirements by 24%. The MB241 Series boasts 100% recyclable packaging and printer casing, with over 90% recyclable components, minimizing their environmental impact.

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum printing width 10.7 cm
Maximum print height 2.54 cm
Printing
Colour No
Print speed 304.8 mm/sec
Maximum resolution 203 x 203 DPI
Maximum printing width 10.7 cm
Maximum print height 2.54 cm
Print technology Direct thermal / Thermal transfer
Number of printable dots 8 dot
Display
Display diagonal 10.2 cm (4")
Display LCD
Network
Wi-Fi Yes
Ethernet LAN Yes
Memory
Internal memory 256 MB
Flash memory 256 MB
Paper handling
Ribbon width 11 cm
Ribbon length 450 m
Maximum media length 12 cm
Ports & interfaces
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
RS-232 ports 1
Connectivity technology Wired & Wireless
Bluetooth Yes
Wi-Fi Yes
Ethernet LAN Yes
USB port Yes
Performance
Built-in barcodes 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 450 m
Internal memory 256 MB
Flash memory 256 MB
Built-in RFID module Yes
Built-in processor Yes
Page description languages DPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II
Tape end detection Yes
Open cover detection Yes
Design
Display diagonal 10.2 cm (4")
Display LCD
Product colour Black
Control type Touch
Built-in display Yes
Power
AC adapter output voltage 24 V
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Product colour Black
Built-in barcodes 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 450 m
Built-in RFID module Yes
Warranty period 2 year(s)
Compliance certificates BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), KC, Norma Oficial Mexicana (NOM), RCM, TÜV mark, UKCA, VCCI, cTUVus
Processor
Built-in processor Yes
Operational conditions
Storage temperature (T-T) 10 - 90 °C
Storage relative humidity (H-H) -40 - 60%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 25 - 85%
Weight & dimensions
Width 248 mm
Depth 436 mm
Height 274 mm
Weight 9.1 kg
Packaging content
Cables included AC, USB
Other features
Warranty period 2 year(s)
