TSC

TSC DH220E label printer

SKU DH220E-A001-0002
£153.88
£153.88
In stock 54 left

TSC

TSC DH220E label printer

SKU DH220E-A001-0002
£153.88

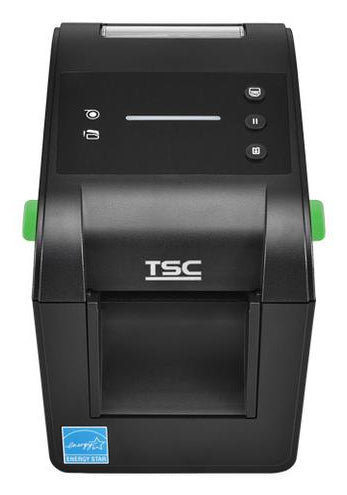

TSC DH220E label printer

Direct Thermal Label Printer, 203 dpi, USB

Description

Seamless Integration, Effortless Deployment

- Out-of-the-box auto-switch print language emulation
- User-friendly and convenient label printing with TSC Standalone Creator and TSCPRTGo

Reducing Downtime, Boosting Uptime

- Real-time remote printer monitoring and management with the Internal Embedded Webpage, virtual control panel, TSC Console, TSC Console Web, and SOTI Connect
- Downtime prevention with self-diagnostic TPH Care, TPH (thermal printhead) maintenance
- User-friendly design: self-diagnostics, toolless TPH and platen roller replacement for easy maintenance, and shortcut buttons for enhanced efficiency
- Supports network security configurations: HTTPS, SNMPv3, 802.1X, and TCP/IP Port 9100 filter

Versatile, Future-Proof Print Quality

- 15mm to 120mm wide media width for diverse media types, optional narrow media adaptors support the narrow label width to 10mm
- High-precision print quality with innovative label stabilizing media damper and adjustments in vertical DPI, heater line, and TPH pressure
- Supports UTF-8 TTF (TrueType Font) for different language label content printing
- Addable future-proof upgrades: Wi-Fi, Bluetooth, cutter module, peeler module, care label cutter kit, linerless tear-off kit, and linerless cutter kit

Environmentally Sustainable Printer

- 100% recyclable packaging with FSC-compliant cartons
- 100% recyclable plastic printer casing made with 30% recycled plastic
- 90%+ of printer components are recyclable

Healthcare Tailored Design

- Perfectly suited for healthcare environments with a crisp white and bright full-color scheme
- Vastly reduces the risk of contamination with an antimicrobial, easy-to-disinfect casing for effortless cleaning
- IEC 60601-1 Medical-Grade Compliant Power Supply, ensuring safe and reliable use in healthcare facilities

Specifications

Print quality
Maximum resolution 300 x 300 DPI
Maximum printing width 5.4 cm
Printing
Print speed 203 mm/sec
Maximum resolution 300 x 300 DPI
Maximum printing width 5.4 cm
Print technology Direct thermal
Number of printable dots 12 dot
Network
Wi-Fi No
Ethernet LAN No
Memory
Internal memory 16 MB
Flash memory 8 MB
Paper handling
Media thickness 0.06 - 0.19 mm
Maximum roll diameter 3.81 cm
Maximum media length 6 cm
Maximum label length 2.286 m
Ports & interfaces
USB 2.0 ports quantity 1
Connectivity technology Wired
Bluetooth No
Wi-Fi No
Ethernet LAN No
USB port Yes
Performance
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
Internal memory 16 MB
Flash memory 8 MB
Built-in processor Yes
Page description languages DPL, EPL, TSPL-EZ, ZPL, ZPL II
Open cover detection Yes
Design
Product colour Black
Control type Buttons
Built-in display No
Power
AC adapter output voltage 24 V
AC adapter output current 2 A
Power consumption (printing) 48 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power source type USB
Technical details
Product colour Black
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, TELEPEN, TELEPENN, TLC39, UPC-A, UPC-E
Maximum label length 2.286 m
Sustainability certificates ENERGY STAR
Warranty period 2 year(s)
Compliance certificates BIS, BSMI, CB, CCC, China RoHS, EAC, Federal Communications Commission (FCC), Industry Canada (IC), Norma Oficial Mexicana (NOM), RCM, REACH, RoHS, UKCA, WEEE, cTUVus
Processor
Built-in processor Yes
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 25 - 85%
Weight & dimensions
Width 138 mm
Depth 210 mm
Height 172 mm
Weight 1.3 kg
Packaging content
Cables included AC, USB
Other features
Warranty period 2 year(s)
