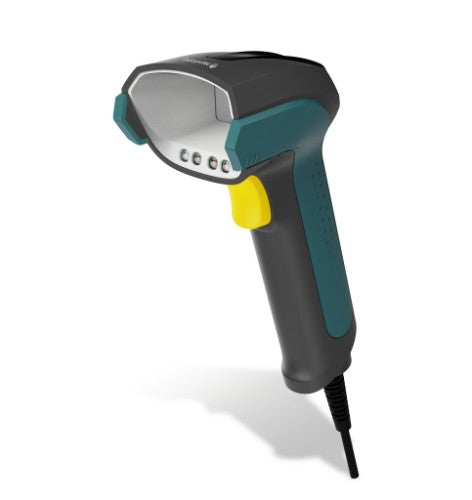

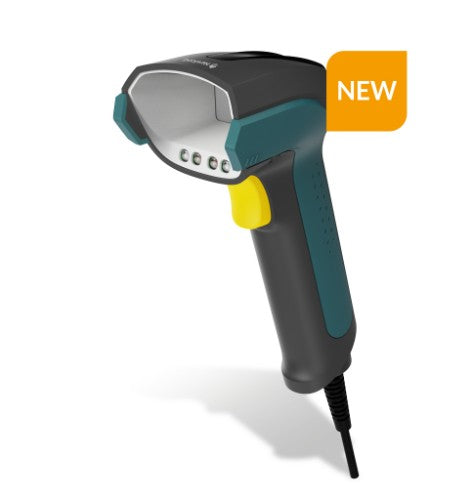

Newland NVH220 Handheld bar code reader 1D/2D CMOS Black

IP64, EasySet, 33°, 1280 x 800 CMOS, 160g, Lophius AI Corded

Key Features

  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • Exceptional decoding of DPM barcodes, including laser part marking and dotting techniques
  • Designed for durability in mind with IP64-sealed housing and 1.8m drop resistance

Description

The NVH220 Lophius AI Corded is a reliable and cost-effective solution designed with ergonomics and a user-friendly interface in mind. It features AI-powered barcode detection and auto-learning capabilities, allowing it to accurately decode a wide range of barcodes in industrial applications, including Direct Part Marking (DPM), even on challenging surfaces. Its plug-and-play functionality makes it easy to set up and configure.

AI-Powered Scanning Technology.
The NVH220 Lophius AI Corded is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The NVH220 Lophius AI Corded excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.

High-Performance DPM Scanning
The NVH220 Lophius AI Corded is distinguished by its outstanding ability to decode DPM barcodes, including those created using laser part marking and dotting techniques. Equipped with an upgraded dual-core processing platform, the NVH220 offers enhanced performance while consuming less power. This results in faster and more stable decoding, as well as improved image capture

Advanced Illumination.
The NVH220 Lophius AI Corded features both red and blue direct illumination and white diffuse lighting. These lighting options can be easily activated using the auto-learning function button located on the top of the device. With this feature, the NVH220 automatically adjusts brightness and light source to optimize barcode decoding, even on challenging materials. This includes reflective surfaces, curved shapes, varied backgrounds (ranging from low to high contrast), and different barcode colors.

Robust by Design.
The NVH220 Lophius AI Corded is built for durability, featuring a robust design that can endure challenging conditions. Its high-protection construction and IP64-sealed housing ensure reliable performance, even in environments with dust and water exposure, as well as after repeated drops from heights of up to 1.8 meters.

Configure To Your Needs.
The NVH220 Lophius AI Corded can be easily configured to meet the specific needs of any application using the free configuration software, EasySet.

Specifications

Scanning
Scanner resolution 0.0508 mm
Type Handheld bar code reader
Linear (1D) barcodes supported AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1-128 (UCC/EAN-128), ISBN, ISBT 128, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI-Plessey, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Yaw reading angle -50 - 50°
Wavelength 650 nm
Tilt reading angle 0 - 360°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -50 - 50°
Optical sensor resolution (W x H) 1280 x 800 pixels
Horizontal field of view 33°
Vertical field of view 22°
Ports & interfaces
Connectivity technology Wired
Cable length 2 m
Standard interfaces RS-232, USB
Performance
Programming function Yes
Protection features Dust resistant, Water resistant
LED indicators Yes
Built-in display No
Built-in processor Yes
International Protection (IP) code IP64
Product colour Black
Certification FCC; IEC 62471; RoHS; CE
Buzzer Yes
Processor cores 2
Print contrast 20%
Vibration function Yes
Design
Type Handheld bar code reader
Protection features Dust resistant, Water resistant
LED indicators Yes
International Protection (IP) code IP64
Product colour Black
Certification FCC; IEC 62471; RoHS; CE
Power
Power consumption 300 mA
Power source type DC
Power consumption (typical) 1.5 W
Input voltage 5 V
AC adapter output voltage 5 V
Weight & dimensions
Width 68 mm
Depth 86 mm
Height 180 mm
Weight 160 g
Technical details
Type Handheld bar code reader
Protection features Dust resistant, Water resistant
LED indicators Yes
Built-in display No
Built-in processor Yes
International Protection (IP) code IP64
Product colour Black
Certification FCC; IEC 62471; RoHS; CE
Buzzer Yes
Programming function Yes
Warranty period 5 year(s)
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Packaging data
Cables included USB
External power adapter Yes
Stand included No
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Drop resistance 1.8 m
Packaging content
Cables included USB
External power adapter Yes
