Newland

Newland NVF260-20 barcode reader Built-in bar code reader 1D/2D CMOS Grey

SKU NLS-NVF260-20
£608.94
£608.94
Only 20 left

Newland

Newland NVF260-20 barcode reader Built-in bar code reader 1D/2D CMOS Grey

SKU NLS-NVF260-20
£608.94

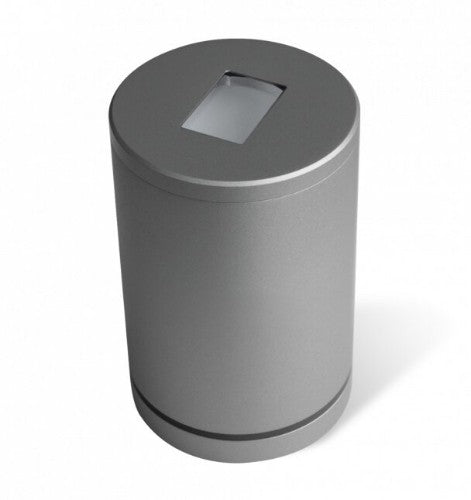

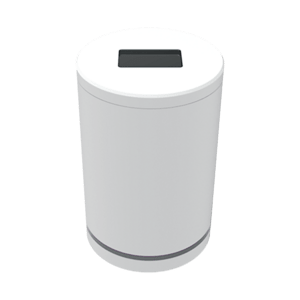

Newland NVF260-20 barcode reader Built-in bar code reader 1D/2D CMOS Grey

1D/2D, 1280x800 CMOS, LED, USB, ø65 mm x 100 mm, 374 g

Key Features

  • DPM Decoding
  • Advanced Illumination
  • Impressive Image Sensor
  • Industrial Design

Description

Designed for healthcare applications, the NVF260 is perfect for tracking surgical instruments. The NVF260 provides excellent performance in reading DPM barcodes with a new generation of industrial decoding algorithms. Its' blue diffuse illumination helps to avoid reflection from metal surfaces.

A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.

DPM Decoding.
With a new generation of industrial decoding, the NVF260 is excellent at reading DPM barcodes even on curved surfaces.

Advanced Illumination.
The NVF260's blue illumination ring helps to reduce bottlenecks in the scanning process by avoiding the reflection from materials with metal surfaces.

Impressive Image Sensor.
With a 1280x800 megapixel imager, the NVF260 can decode up to 3-millimetre barcodes.

Industrial Design.
Built with an IP64 housing, the NVF260 easily resists water and dust. The medical-grade housing is also able to be sterilized without alcohol damage.

NFV260 2D CMOS Mega Pixel Medical scanner, DPM and HD scanner with direct USB cable

Specifications

Scanning
Type Built-in bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Data Matrix, QR Code
Yaw reading angle 0 - 360°
Tilt reading angle -40 - 40°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -40 - 40°
Optical sensor resolution (W x H) 1280 x 800 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
Performance
Protection features Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code IP64
Product colour Grey
Certification FCC Part15 Class B, CE EMC Class B
Buzzer Yes
Design
Type Built-in bar code reader
Protection features Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code IP64
Product colour Grey
Certification FCC Part15 Class B, CE EMC Class B
Power
Power consumption 230 mA
Power source type USB
Input voltage 5 V
Weight & dimensions
Width 65 mm
Depth 65 mm
Height 100 mm
Weight 347 g
Technical details
Type Built-in bar code reader
Protection features Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code IP64
Product colour Grey
Certification FCC Part15 Class B, CE EMC Class B
Buzzer Yes
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) 20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Cables included USB
