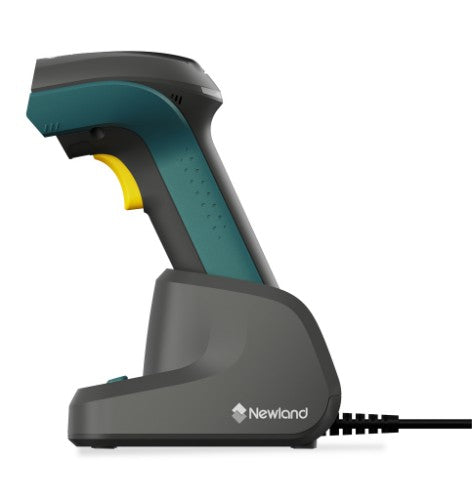

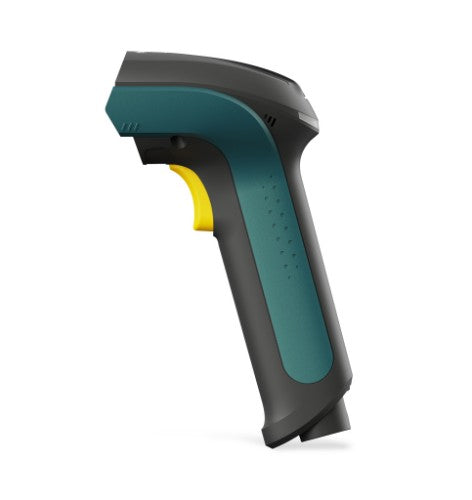

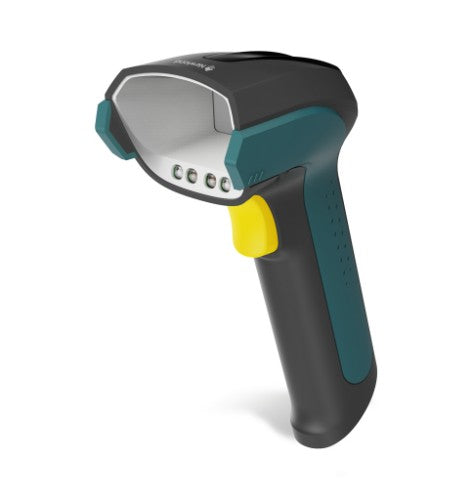

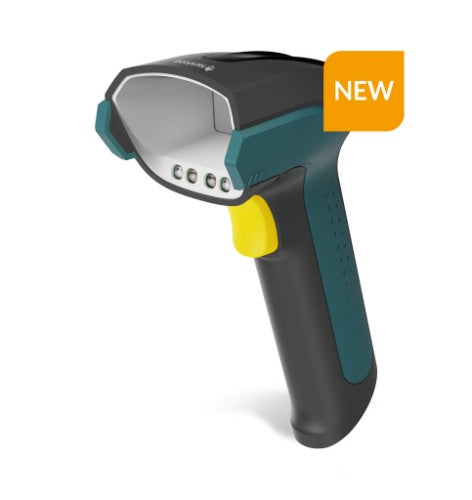

Newland NLS-NVH220B-V2-XD barcode reader Handheld bar code reader 1D/2D CMOS Black, Dark Grey

Lophius AI Bluetooth, 1280 x 800 CMOS, 2900 mAh, 218g, 1.8m, IP64, IP42

Key Features

  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • Exceptional decoding of DPM barcodes, including laser part marking and dotting techniques
  • Wireless scanning up to 150m with Bluetooth 5.0

Description

The NVH220 Lophius AI Bluetooth is a reliable and cost-effective solution designed with ergonomics and a user-friendly interface in mind. It features AI-powered barcode detection and auto-learning capabilities, allowing it to accurately decode a wide range of barcodes in industrial applications, including Direct Part Marking (DPM), even on challenging surfaces. Plus, with Bluetooth 5.0, the Lophius provides fast wireless communication and data transmission over distances of up to 150 meters.

AI-Powered Scanning Technology.
The NVH220 Lophius AI BT is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The NVH220 Lophius AI BT excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.

High-Performance DPM Scanning
The NVH220 Lophius AI BT is distinguished by its outstanding ability to decode DPM barcodes, including those created using laser part marking and dotting techniques. Equipped with an upgraded dual-core processing platform, the NVH220 offers enhanced performance while consuming less power. This results in faster and more stable decoding, as well as improved image capture.

Robust by Design.
The NVH220 Lophius AI BT is built for durability, featuring a robust design that can endure challenging conditions. Its high-protection construction and IP64-sealed housing ensure reliable performance, even in environments with dust and water exposure, as well as after repeated drops from heights of up to 1.8 meters.

Advanced Illumination.
The NVH220 Lophius AI BT features both red and blue direct illumination and white diffuse lighting. These lighting options can be easily activated using the auto-learning function button located on the top of the device. With this feature, the NVH220 automatically adjusts brightness and light source to optimize barcode decoding, even on challenging materials. This includes reflective surfaces, curved shapes, varied backgrounds (ranging from low to high contrast), and different barcode colors.

Reliable Data Transmission.
The NVH220 Lophius AI BT, equipped with Bluetooth 5.0, ensures fast wireless communication with low latency. This stable and reliable connection supports data transmission over a range of up to 150 meters, providing all-day flexibility and efficiency on the work floor.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI-Plessey, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Yaw reading angle -50 - 50°
Wavelength 650 nm
Tilt reading angle 0 - 360°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -50 - 50°
Optical sensor resolution (W x H) 1280 x 800 pixels
Trigger mode Auto-induction, Continuous, Manual
Laser guide Yes
2D resolution (min) 0.07163 mm
1D resolution (min) 0.03175 mm
Horizontal field of view 33°
Vertical field of view 22°
Ports & interfaces
Wireless range 150 m
Connectivity technology Wired & Wireless
Bluetooth version 5.0
Bluetooth Low Energy (BLE) Yes
Standard interfaces Bluetooth, RS-232, USB
Performance
Programming function Yes
Protection features Drop resistant, Dust resistant, Water resistant
LED indicators Yes
Built-in processor Yes
International Protection (IP) code IP64
Product colour Black, Dark Grey
Certification FCC,RoHS 2.0,IEC 60825,IEC 62471,CCC,CE,ISO 16750
Buzzer Yes
Processor cores 2
Print contrast 15%
Vibration function Yes
Design
Type Handheld bar code reader
Protection features Drop resistant, Dust resistant, Water resistant
LED indicators Yes
International Protection (IP) code IP64
Product colour Black, Dark Grey
Certification FCC,RoHS 2.0,IEC 60825,IEC 62471,CCC,CE,ISO 16750
Power
Power consumption 370 mA
Power source type Battery
Power consumption (typical) 1.4 W
Battery life 17 h
Charging time 3 h
Number of reads per charge 60000
Battery capacity 2900 mAh
AC adapter output voltage 5 V
Weight & dimensions
Base dimensions (WxDxH) 103 x 127 x 123 mm
Width 68 mm
Depth 86 mm
Height 180 mm
Weight 218 g
Base weight 217 g
Technical details
Type Handheld bar code reader
Protection features Drop resistant, Dust resistant, Water resistant
LED indicators Yes
Built-in processor Yes
International Protection (IP) code IP64
Product colour Black, Dark Grey
Certification FCC,RoHS 2.0,IEC 60825,IEC 62471,CCC,CE,ISO 16750
Buzzer Yes
Programming function Yes
Warranty period 3 year(s)
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Packaging data
Charging base Yes
Cables included USB
External power adapter Yes
Stand included Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Drop resistance 1.8 m
Battery
Battery capacity 2900 mAh
Packaging content
Charging base Yes
Cables included USB
External power adapter Yes
