Newland NLS-FM100GD-RC barcode reader Fixed bar code reader 1D CCD Black

SKU NLS-FM100GD-RC
£60.91
£60.91
In stock 57 left

Newland

Newland NLS-FM100GD-RC barcode reader Fixed bar code reader 1D CCD Black

SKU NLS-FM100GD-RC
£60.91

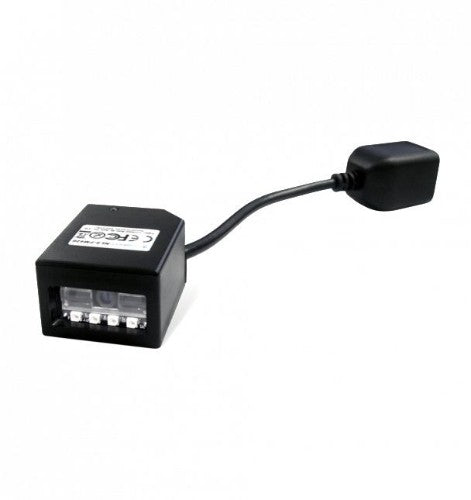

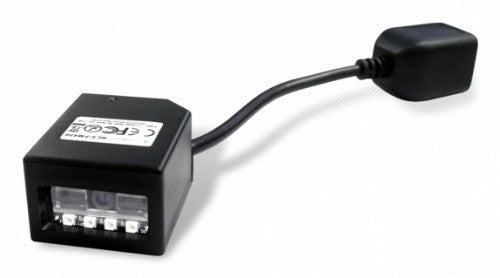

Newland NLS-FM100GD-RC barcode reader Fixed bar code reader 1D CCD Black

1D, CCD, 628 nm, 2m RS-232

Description

It’s reading performance reaches and exceeds global standards.

Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.

Ease of integration.

Compact and easy to integrate design. The small form factor enables easy integration into various solutions. This 1D fixed barcode scanner has an IP54 rating making it dust & water resistant.

Advance Technology.

Includes core-technology, which is independently designed and manufactured by Newland Auto-ID. Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its reading performance reaches and exceeds global standards. By using the accessories provided, the user can easily set up the scanner to their customer's environment.

Application scenarios.

Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.


Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar, Code 128, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
Yaw reading angle 60 - 60°
Wavelength 628 nm
Tilt reading angle -30 - 30°
Sensor type CCD
Scanner type 1D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 100000 lx
Trigger mode Continuous, Manual
Horizontal field of view 40°
Ports & interfaces
Connectivity technology Wired
Cable length 2 m
Standard interfaces RS-232
Performance
Protection features Dust resistant, Water resistant
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP54
Product colour Black
Buzzer Yes
Print contrast 30%
Light levels (direct sunlight) 0 - 100000 lx
Design
Type Fixed bar code reader
Protection features Dust resistant, Water resistant
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP54
Product colour Black
Power
Power source type DC
Input voltage 5 V
AC adapter output voltage 100-240 V
Input current 1.5 A
Weight & dimensions
Width 37 mm
Depth 49 mm
Height 26 mm
Weight 70 g
Technical details
Type Fixed bar code reader
Protection features Dust resistant, Water resistant
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP54
Product colour Black
Buzzer Yes
Compliance certificates Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KC
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) -5 - 45 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 100000 lx

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
