Newland HR23 Dorada Corded Handheld bar code reader 1D/2D CMOS Black

HR23 Dorada Corded, 640x480 CMOS, 1D & 2D, IP52 + Smart adjustable stand NLS-STD23-33-SA

Key Features

  • 1D & 2D
  • CPU
  • CMOS
  • IP52
  • 1.5m drop
  • EasySet

Description

The HR23 Dorada offers the best 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.

Outstanding Performance.
This new version of the Dorada scanner delivers exceptional scanning performance at an entry-level price. Improved decoding technology makes it the best scanner in terms of performance and value.

Comfortable and Balanced Design.
The HR23 Dorada is a modern and appealing scanner that is ergonomically designed to fit comfortably in the hand. Although lightweight to reduce user fatigue, the scanner feels sturdy and looks nice, making it an excellent all-round user experience.

Easyset
The Dorada series can be easily configured using Newland Easyset software. This tool, exclusively developed for Newland devices, allows users to change settings, clone devices, update firmware, and analyze scanned data.

Durable
Don't underestimate the robustness of the Dorada scanner. With an IP52 rating and a 1.5m drop spec, it is suitable for most applications that require a cabled barcode scanner.

Hands-free choices.

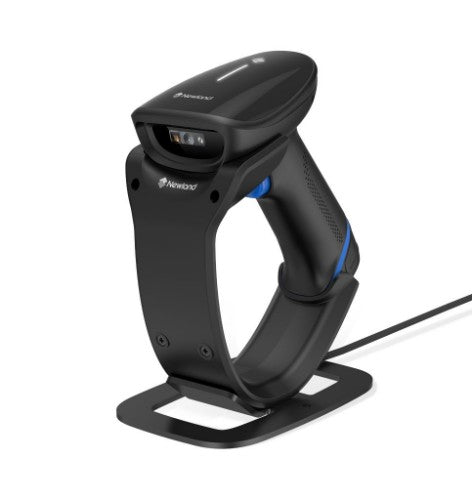

The HR23 Dorada offers various stands for hands-free scanning. The primary option is the adjustable Smart Stand, which can transition from an upright position to a flat layout. This adaptable stand is suitable for both desktop and wall-mounted options. Alternatively, there is a flexible gooseneck design available, which offers a graceful curve that adjusts effortlessly to your desired scanning distance and angle.

A trustworthy Guarantee.
With a 5-year guarantee, the HR23 Dorada offers added confidence for daily scanning.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Tilt reading angle 0 - 360°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle 0 - 60°
Optical sensor resolution (W x H) 640 x 480 pixels
Horizontal field of view 45°
Vertical field of view 34°
Ports & interfaces
Connectivity technology Wired
USB 2.0 ports quantity 1
Standard interfaces USB
Performance
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Certification IEC62471
Buzzer Yes
Print contrast 20%
Vibration function Yes
Design
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Certification IEC62471
Power
Power consumption 190 mA
Power source type USB
Battery voltage 5 V
Input voltage 5 V
Weight & dimensions
Width 95 mm
Depth 68 mm
Height 161 mm
Weight 137 g
Technical details
Type Handheld bar code reader
LED indicators Yes
USB 2.0 ports quantity 1
International Protection (IP) code IP52
Product colour Black
Certification IEC62471
Buzzer Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Drop resistance 1.5 m
Other features
USB 2.0 ports quantity 1
