Newland

Newland HR12 Anchoa Handheld bar code reader 1D CCD Black

SKU NLS-HR1250-70
£37.28
£22.84
£37.28
£22.84
In stock 94 left

Newland

Newland HR12 Anchoa Handheld bar code reader 1D CCD Black

SKU NLS-HR1250-70
£37.28
£22.84

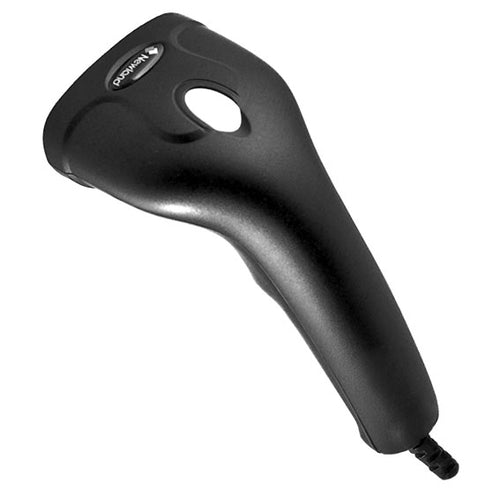

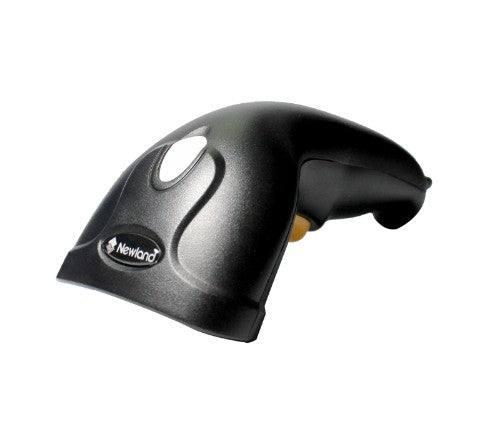

Newland HR12 Anchoa Handheld bar code reader 1D CCD Black

1D, CCD, 610-640nm, ≥4mil, USB, Black, 130g

Description

The HR12 Anchoa handheld scanner is a practical & user friendly entry level scanner at an extremely competitive price. The Anchoa incorporates Newland's 1D chip technology for excellent 1D barcode scanning performance at exceptionally low power consumption.

The HR12 Anchoa can perform up to 300 scans per second, which translates into very fast and accurate barcode capturing. In addition, its compact size, ergonomic and solid state design makes a smart solution for extensive use in varied environments.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, ITF-14, MSI
2D (matrix & stacked) barcodes supported Not supported
Yaw reading angle -30 - 30°
Wavelength 640 nm
Tilt reading angle -60 - 60°
Sensor type CCD
Scanner type 1D
Read rate (max) 300 reads/s
Pitch reading angle -60 - 60°
Ports & interfaces
Connectivity technology Wired
Cable length 2 m
Standard interfaces USB
Performance
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Built-in processor Yes
International Protection (IP) code IP41
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Design
Type Handheld bar code reader
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) code IP41
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Power
Power consumption 120 mA
Power source type DC
Weight & dimensions
Width 68.4 mm
Depth 163 mm
Height 58.5 mm
Weight 130 g
Technical details
Type Handheld bar code reader
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Built-in processor Yes
International Protection (IP) code IP41
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Sustainability compliance Yes
Warranty period 5 year(s)
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Cables included USB

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
