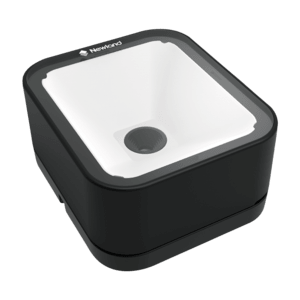

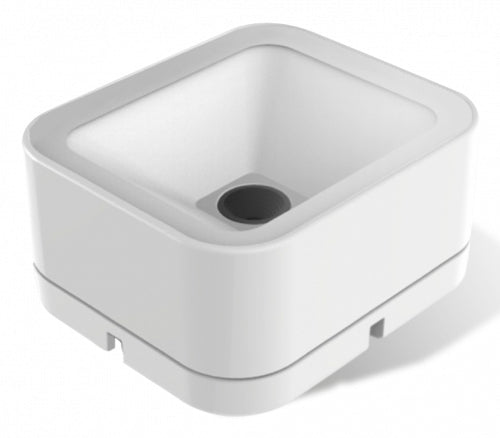

Newland FR27 Urchin Fixed bar code reader 1D/2D CMOS White

1D/2D, CMOS, IP42, USB

Description

Superior self-service scanning from screen
The FR27 Urchin is primarily designed to be easy to use for self-service scanning from customers' phone screens. A remarkably wide field of view means even the largest codes presented on the largest phone screens are scanned easily.

Snappy scanning from paper, metal and plastic
Printed barcodes are still used in many applications, so the FR27 Urchin makes sure it can cope with them. It maintains top performance with all types of 1D and 2D codes presented to it on paper, metal and plastic surfaces. Even curved and creased codes pose no challenge.

Small and stylish
The FR27 Urchin packs all its scanning power into a small, sleek design. Making not only a great space saver but looking good while doing so. The scanner has a smooth and simple finish that blends well with any countertops design from boutique to café.

Fast scanning with outstanding motion tolerance
The FR27 Urchin has an outstanding 2.7m per second motion tolerance for applications where fast scanning on moving codes is vital. Clearing lines of customers self-scanning or clearing baskets of items at the point of sale, the FR27 gives you more speed than ever before.

Clear visual feedback
Using soft white illumination to scan barcodes, the FR27 Urchin also utilises its white background to project a green led, indicating a good read. Visual feed-back in a self-service application makes all the difference in giving customers confidence in achieving a successful scan.

Flexible mounting options
Mindful that the FR27 Urchin can suit access control and kiosk applications, its case has a design that allows you to manipulate the cable for mounting portrait or landscape. It also has threaded fixing points for vertical mounting.

Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported EAN-13
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -75 - 75°
Optical sensor resolution (W x H) 640 x 480 pixels
Horizontal field of view 68°
Vertical field of view 51°
Ports & interfaces
Connectivity technology Wired
Cable length 1.5 m
Standard interfaces USB
Performance
International Protection (IP) code IP42
Product colour White
Ambient lighting Yes
Design
Type Fixed bar code reader
International Protection (IP) code IP42
Product colour White
Power
Power source type USB
Input voltage 5 V
Weight & dimensions
Width 66.3 mm
Depth 76.3 mm
Height 38 mm
Weight 120 g
Technical details
Type Fixed bar code reader
International Protection (IP) code IP42
Product colour White
Compliance certificates CE, Federal Communications Commission (FCC), RoHS, VCCI
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Drop resistance 1.5 m
