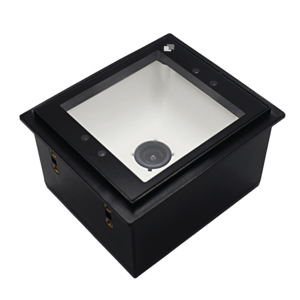

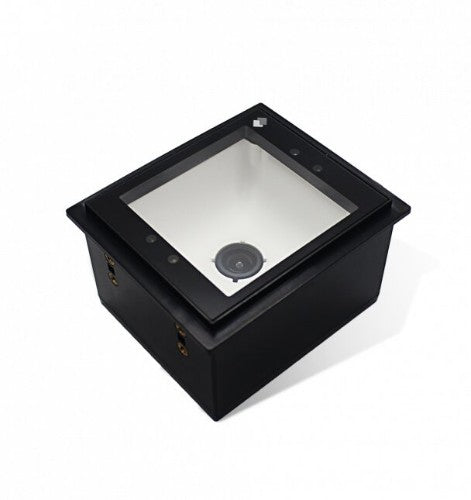

Newland FM3080 Hind Fixed bar code reader 1D/2D CMOS Black

1D/2D, 800x800 CMOS, LED, RS232, 78.7 x 67.7 x 47.5 mm, 132 g

Key Features

  • Snappy on-screen barcode capture
  • Instant visual feedback
  • Small form factor
  • IR and light sensors
  • IP65 sealing
  • Anti Reflection

Description

Prepared for integration in your kiosk or counter, the FM3080 Hind combines performance and customization. The large scan window is optimized to read barcodes from a mobile phone, even codes with large amounts of data.

Impressive scanning capabilities combined with customization.
With 4 color options available, the FM3080 Hind can be easily programmed to indicate a successful read or to match your brand.

Snappy on-screen barcode capture.
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

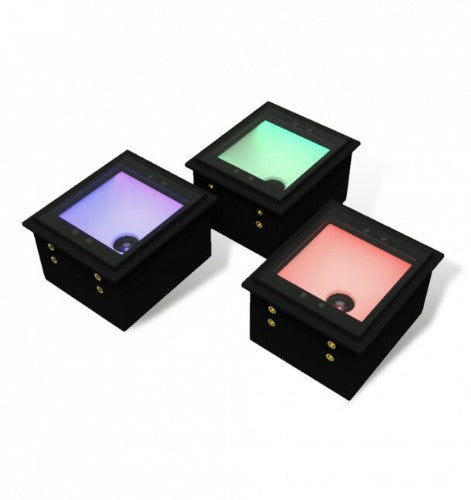

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

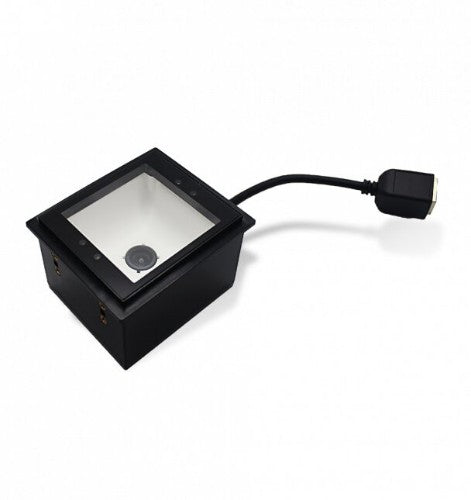

FM30 Hind 2D CMOS Mega Pixel fixed mounted reader for kiosk integration, 3 Color LED index, optimized to read from cell phone & paper. Including data formatting &RS232 cable and multi plug adapter.

Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar 125, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Yaw reading angle 0 - 360°
Tilt reading angle -40 - 40°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -40 - 40°
Optical sensor resolution (W x H) 800 x 800 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232
Performance
Protection features Electrostatic Discharge (ESD) protection
International Protection (IP) code IP65
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Buzzer Yes
Design
Type Fixed bar code reader
Protection features Electrostatic Discharge (ESD) protection
International Protection (IP) code IP65
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Power
Power consumption 250 mA
Power source type RS-232
Input voltage 5 V
Weight & dimensions
Width 78.7 mm
Depth 67.7 mm
Height 47.5 mm
Weight 132 g
Technical details
Type Fixed bar code reader
Protection features Electrostatic Discharge (ESD) protection
International Protection (IP) code IP65
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Buzzer Yes
Packaging data
Cables included RS-232
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Cables included RS-232
