Newland

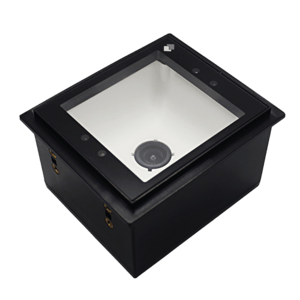

Newland FM30 Fixed bar code reader 1D/2D CMOS Black

SKU NLS-FM3080V2-20
£152.59
£93.15
£152.59
£93.15
In stock 106 left

Newland

Newland FM30 Fixed bar code reader 1D/2D CMOS Black

SKU NLS-FM3080V2-20
£152.59
£93.15
Newland FM30 Fixed bar code reader 1D/2D CMOS Black

800 x 800, CMOS, 1D/2D, USB, IP65, 78.7 x 67.7 x 47.5 mm, 132g

Key Features

  • 1D & 2D
  • Mobile Reading
  • Visual Feedback
  • CMOS
  • Dual Interface
  • IP65
  • Infrared
  • EasySet

Description

Snappy on-screen barcode capture.
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Yaw reading angle 0 - 360°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -40 - 40°
Optical sensor resolution (W x H) 800 x 800 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
Performance
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
International Protection (IP) code IP65
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Buzzer Yes
Design
Type Fixed bar code reader
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
International Protection (IP) code IP65
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Power
Power consumption 250 mA
Power source type USB
Input voltage 5 V
Weight & dimensions
Width 78.7 mm
Depth 67.7 mm
Height 47.5 mm
Weight 132 g
Technical details
Type Fixed bar code reader
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
International Protection (IP) code IP65
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B
Buzzer Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
