1D/2D, OCR, 0 - 100.000 lux, USB 2.0, Bluetooth 4.2, IP65, IP68

Description

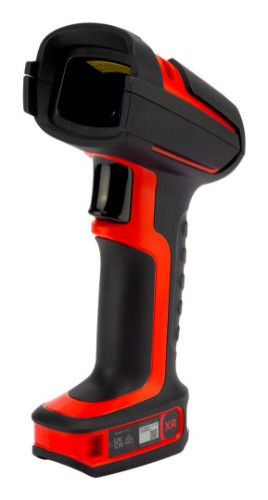

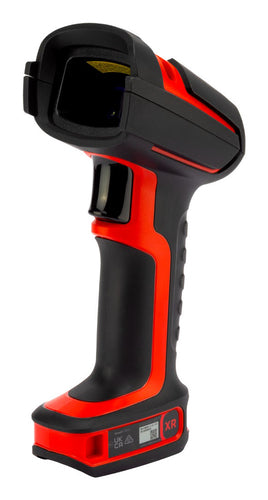

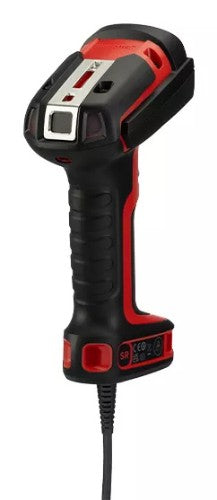

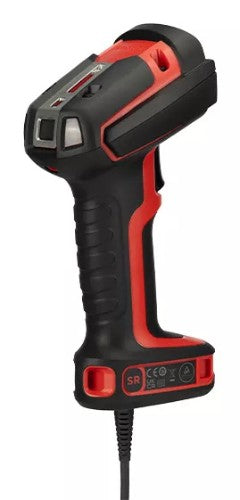

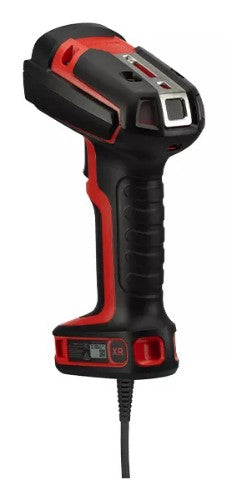

Granit Ultra scanners offer ultra scan performance, ultra durability, and ultra ease of use for premium productivity in rugged scanning applications from contact up to arm length (SR model), 10m/33’ (XR model), or 30m/98’ (XLR model)

Ultra Scan Performance

For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP*, enabling improved productivity.

Ultra Durability

In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Honeywell Granit Ultra is ready to deliver.​​​​​​​

Ultra Ease of Use

Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell’s Data Format Editor.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported China Post, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, Pharmacode, UPC-A, UPC-E, UPC-E0
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, DotCode, MaxiCode, PDF417
Wavelength 520 nm
Sensor type Laser
Scanner type 1D/2D
Horizontal field of view 42°
Vertical field of view 36°
Ports & interfaces
Connectivity technology Wired & Wireless
Bluetooth version 4.2
Standard interfaces USB
Performance
International Protection (IP) code IP65, IP68
Product colour Black, Red
Design
Type Handheld bar code reader
International Protection (IP) code IP65, IP68
Product colour Black, Red
Power
Power source type Battery
Battery technology Lithium-Ion (Li-Ion)
Weight & dimensions
Width 194.8 mm
Depth 75.8 mm
Height 139.5 mm
Weight 330 g
Technical details
Type Handheld bar code reader
International Protection (IP) code IP65, IP68
Product colour Black, Red
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -30 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
