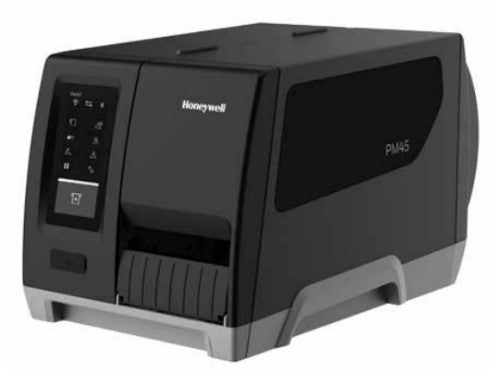

Honeywell

Honeywell PM45A label printer Thermal transfer 203 x 203 DPI 350 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU PM45A00000000200
£1,155.43
£1,155.43
Only 6 left

Honeywell

Honeywell PM45A label printer Thermal transfer 203 x 203 DPI 350 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

SKU PM45A00000000200
£1,155.43
Honeywell PM45A label printer Thermal transfer 203 x 203 DPI 350 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

PM45A, Icon Display, Ethernet, Fixed Hanger, Real Time Clock (RTC), Thermal Transfer (TT), 203 DPI, No Power Cord

Description

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Printing
Colour No
Printing colours Black
Print speed 350 mm/sec
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Print technology Thermal transfer
Number of printable dots 8 dot
Display
Display LCD
Network
Wi-Fi Yes
Ethernet LAN Yes
Memory
Internal memory 256 MB
Flash memory 512 MB
Paper handling
Maximum roll diameter 21.3 cm
Maximum label width 11.4 cm
Core diameter 7.62 cm
Ports & interfaces
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB 2.0 ports quantity 2
RS-232 ports 1
Connectivity technology Wired & Wireless
Bluetooth version 5.0
Bluetooth Yes
Wi-Fi Yes
Ethernet LAN Yes
USB port Yes
Performance
Mobile operating systems supported Android, iOS
Internal memory 256 MB
Image formats supported BMP, GIF, PCX, PNG
Flash memory 512 MB
Page description languages DP, DPL, IPL, XML, ZPL II
Design
Display LCD
Product colour Black
Control type Touch
Built-in display Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Windows operating systems supported Yes
Product colour Black
Maximum label width 11.4 cm
Image formats supported BMP, GIF, PCX, PNG
System requirements
Mobile operating systems supported Android, iOS
Linux operating systems supported Yes
Windows operating systems supported Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 5 - 40 °C
Operating relative humidity (H-H) 20 - 85%
Weight & dimensions
Width 284 mm
Depth 483 mm
Height 295 mm
Weight 13.2 kg
