Honeywell

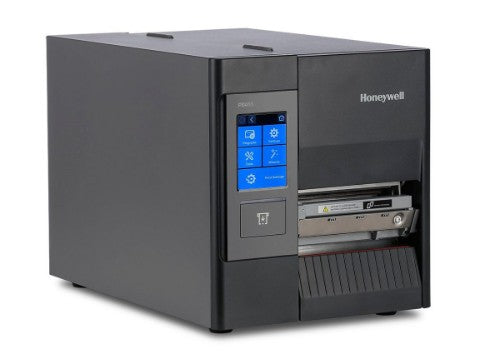

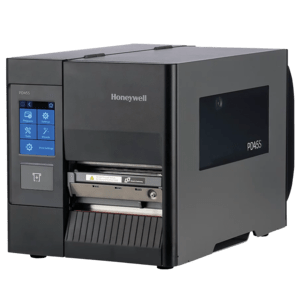

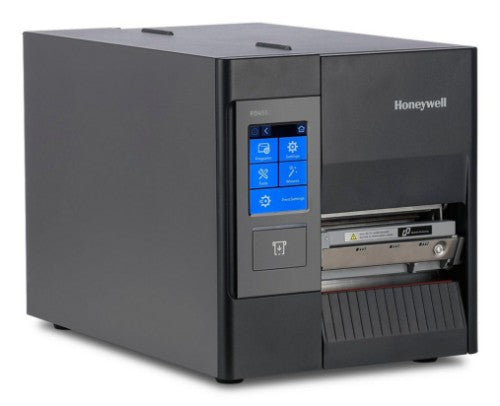

Honeywell PD45S0F label printer Direct thermal / Thermal transfer 203 x 203 DPI 250 mm/sec Wired Ethernet LAN

SKU PD45S0FE010000200
£608.77
£608.77
In stock 64 left

Honeywell

Honeywell PD45S0F label printer Direct thermal / Thermal transfer 203 x 203 DPI 250 mm/sec Wired Ethernet LAN

SKU PD45S0FE010000200
£608.77
Honeywell PD45S0F label printer Direct thermal / Thermal transfer 203 x 203 DPI 250 mm/sec Wired Ethernet LAN

PD45S, 3.5" Color Touch LCD-Display, 8 dots/mm (203 dpi), ZPLII, ZSim II, IPL, DPL, USB, USB Host, RS232

Description

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Printing
Minimum print length 4.8 m
Colour No
Print speed 250 mm/sec
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Print technology Direct thermal / Thermal transfer
Display
Display diagonal 8.89 cm (3.5")
Display LCD
Network
Ethernet LAN Yes
Memory
Internal memory 128 MB
Flash memory 128 MB
Paper handling
Ribbon width 11 cm
Ribbon length 450 m
Media thickness 0.224 mm
Maximum roll diameter 8 cm
Ports & interfaces
RS-232 ports 1
Connectivity technology Wired
Ethernet LAN Yes
USB port Yes
Performance
Ribbon width 11 cm
Ribbon length 450 m
Internal memory 128 MB
Flash memory 128 MB
Built-in processor Yes
Page description languages IPL, DP, Fingerprint (FP), DPL, XML, ZPL II, ZSim2
Design
Display diagonal 8.89 cm (3.5")
Display LCD
Product colour Black
Built-in display Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Product colour Black
Ribbon width 11 cm
Ribbon length 450 m
Harmonized System (HS) code 84433210
Processor
Built-in processor Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 20 - 85%
Operating temperature (T-T) 5 - 40 °C
Operating relative humidity (H-H) 20 - 85%
Weight & dimensions
Width 249 mm
Depth 438 mm
Height 270 mm
Weight 9.34 kg
Logistics data
Harmonized System (HS) code 84433210
