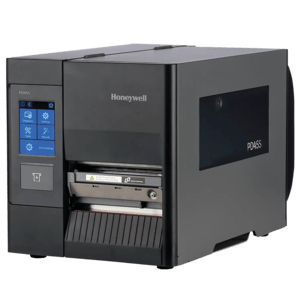

Honeywell PD4500C label printer Direct thermal / Thermal transfer 300 x 300 DPI 100 mm/sec Wired Ethernet LAN

SKU PD4500CE010000200
£497.04
£497.04
In stock 50 left

Honeywell

Honeywell PD4500C label printer Direct thermal / Thermal transfer 300 x 300 DPI 100 mm/sec Wired Ethernet LAN

SKU PD4500CE010000200
£497.04
Honeywell PD4500C label printer Direct thermal / Thermal transfer 300 x 300 DPI 100 mm/sec Wired Ethernet LAN

PD45, 12 dots/mm (300 dpi), display, ZPLII, ZSim II, IPL, DPL, USB, USB Host, RS232, Ethernet

Description

The PD45 is Honeywell’s new commercial grade industrial printer, which is suited for manufacturing, retail, transportation and logistics, health care, and government applications. The PD45 is available with standard features such as smart printing capability, in which users can configure and finetune settings without the need for a host computer by running apps right inside the printer – minimizing the need to connect to a PC. With Honeywell print platform that supports multiple print languages, PD45 can be an effective alternative to the competing printers available in the market.

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45 is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings and applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it convenient for ribbon and paper loading.
The PD45 runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.75mm. Two sets of adjustable pressure bars and a double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles and printing dirt.

Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45 supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, onekey installation of printer driver and easy windows configuration.

Specifications

Print quality
Maximum resolution 300 x 300 DPI
Maximum printing width 10.6 cm
Printing
Minimum print length 4.8 m
Colour No
Print speed 100 mm/sec
Maximum resolution 300 x 300 DPI
Maximum printing width 10.6 cm
Print technology Direct thermal / Thermal transfer
Network
Ethernet LAN Yes
Paper handling
Ribbon width 11 cm
Ribbon length 450 m
Media thickness 0.224 mm
Maximum roll diameter 8 cm
Ports & interfaces
RS-232 ports 1
Connectivity technology Wired
Ethernet LAN Yes
USB port Yes
Performance
Ribbon width 11 cm
Ribbon length 450 m
Built-in processor Yes
Page description languages DP, DPL, Fingerprint (FP), IPL, XML, ZPL II, ZSim2
Design
Product colour Black
Built-in display No
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Product colour Black
Ribbon width 11 cm
Ribbon length 450 m
Harmonized System (HS) code 84433210
Processor
Built-in processor Yes
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Storage relative humidity (H-H) 20 - 85%
Operating temperature (T-T) 5 - 40 °C
Operating relative humidity (H-H) 20 - 85%
Weight & dimensions
Width 249 mm
Depth 438 mm
Height 270 mm
Weight 9.25 kg
Logistics data
Harmonized System (HS) code 84433210
