Orbit 7190g, USB-kit, 1D/2D, EAS, 410g

Description

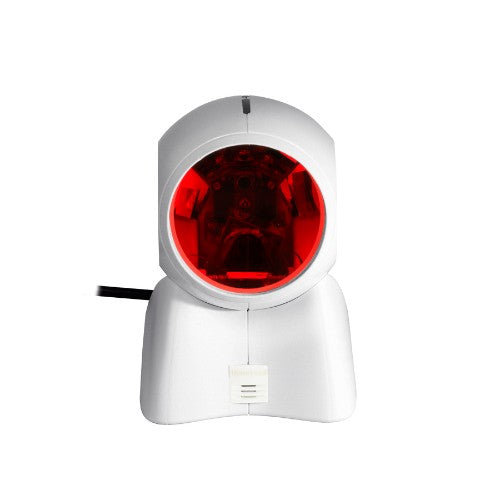

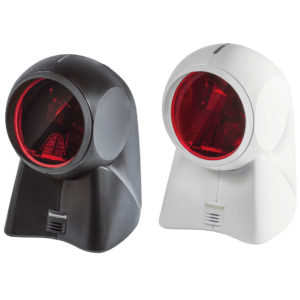

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer – enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.

Breakthrough Hybrid Technology
The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

Dual-Working Modes
With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.

Superior Scanning Performance
A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.

Adjustable Scan Head
The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.

Multi-Interface Design
Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.

Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Code 39, GS1 DataBar Omnidirectional, U.P.C.
2D (matrix & stacked) barcodes supported Data Matrix, PDF417, QR Code
Yaw reading angle 0 - 70°
Working distance 32.7 cm
Sensor type Laser
Scanner type 1D/2D
Read rate (max) 1120 reads/s
Pitch reading angle 0 - 60°
Light levels (direct sunlight) 4842 - 100000 lx
Ports & interfaces
Connectivity technology Wired
Standard interfaces Keyboard wedge, RS-232, RS-485, USB
Performance
LED indicators Status
Built-in display No
Product colour White
Certification CE, RoHS
Light levels (direct sunlight) 4842 - 100000 lx
Design
Type Fixed bar code reader
LED indicators Status
Product colour White
Certification CE, RoHS
Power
Power consumption 472 mA
Power source type DC
Input voltage 5 V
Weight & dimensions
Width 108 mm
Depth 103 mm
Height 148 mm
Weight 410 g
Technical details
Type Fixed bar code reader
LED indicators Status
Built-in display No
Product colour White
Certification CE, RoHS
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 4842 - 100000 lx
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
