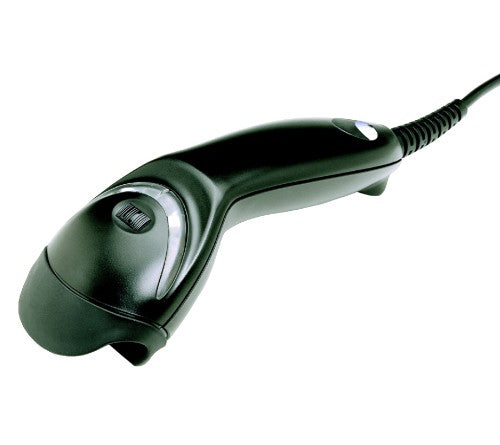

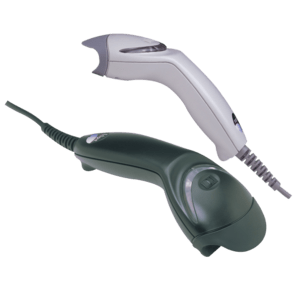

Honeywell MS5145 Eclipse Handheld bar code reader 1D Laser Black

MS5145 Eclipse, black

Description

The MS5145 Eclipse is a single-line, hand-held laser scanner. Honeywell’s patented CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.

CodeGate: Ideal for menu scanning applications

CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected

Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit

Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic

OPOS and JPOS system compatible: Easily adaptable to any end-user system environment

Specifications

Scanning
Type Handheld bar code reader
2D (matrix & stacked) barcodes supported Not supported
Working distance 150 cm
Wavelength 650 nm
Tilt reading angle 0 - 52°
Sensor type Laser
Scanner type 1D
Read rate (max) 42 reads/s
Pitch reading angle 0 - 68°
Light levels (direct sunlight) 0 - 4842 lx
Ports & interfaces
Connectivity technology Wired
Cable length 2.1 m
Standard interfaces RS-232
Performance
LED indicators Yes
Product colour Black
Certification 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B
Light levels (direct sunlight) 0 - 4842 lx
Design
Type Handheld bar code reader
LED indicators Yes
Product colour Black
Certification 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B
Power
Power consumption 675 mA
Power source type DC
Power consumption (typical) 0.672 W
Input voltage 5 V
Weight & dimensions
Width 63 mm
Depth 169 mm
Height 51 mm
Weight 100 g
Technical details
Type Handheld bar code reader
LED indicators Yes
Product colour Black
Certification 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 4842 lx
Logistics data
Harmonized System (HS) code 84716070
