Datalogic

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black

SKU TD1120-BK-65K1
£46.57
£46.57
In stock 833 left

Datalogic

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black

SKU TD1120-BK-65K1
£46.57

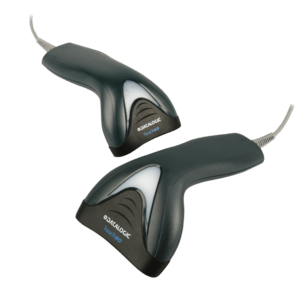

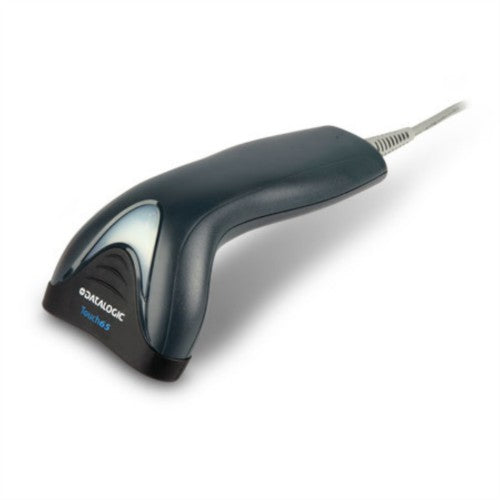

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black

Corded, USB Kit w/Scanner, Holder, 90A052044 Cable, Black

Description

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Code 39, EAN-13
2D (matrix & stacked) barcodes supported Not supported
Yaw reading angle -70 - 70°
Working distance 15 cm
Wavelength 640 nm
Tilt reading angle -45 - 45°
Tilt angle range -45 - 45°
Sensor type Laser
Scanner type 1D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 20000 lx
Ports & interfaces
Connectivity technology Wired
Bluetooth No
Standard interfaces USB
Performance
Built-in display No
International Protection (IP) code IP30
Product colour Black
Certification RoHS
Buzzer Yes
Light levels (direct sunlight) 0 - 20000 lx
Design
Type Handheld bar code reader
International Protection (IP) code IP30
Product colour Black
Certification RoHS
Power
Power consumption 100 mA
Input voltage 5 V
Weight & dimensions
Width 84 mm
Depth 160 mm
Height 58 mm
Weight 130 g
Technical details
Type Handheld bar code reader
Built-in display No
International Protection (IP) code IP30
Product colour Black
Certification RoHS
Buzzer Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 20000 lx
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
