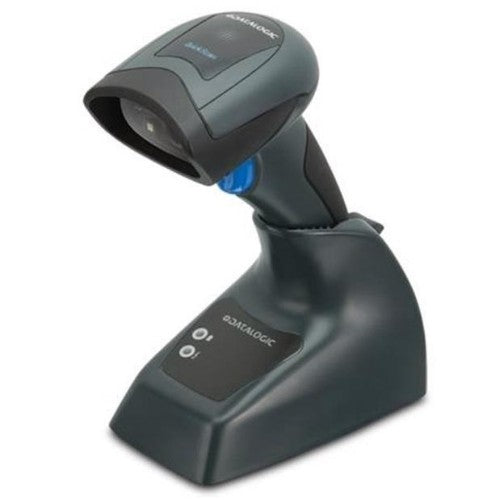

Datalogic QuickScan Mobile QM2131 Handheld bar code reader 1D Black

433 MHz, 25 m, 1D, RS-232, 120000 lux, IP42, Linear Imager

Description

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QM2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433 Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.

Features
- Extra-wide scan angle and extra-long scan line
- Sharp and highly visible scan line
- Enhanced depth of field for general purpose scanning applications
- Datalogic's STAR2.0 Cordless System™ with up to 25.0 m / 82.0 ft range
- Secure radio communications, interference-free with low sensitivity to obstacles
- Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
- New battery package allows simultaneous change of charging contacts during battery replacement
- Alternative battery recharging through USB /microUSB cable
- Datalogic's patented 'Green Spot' technology for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Specifications

Scanning
Type Handheld bar code reader
Yaw reading angle -70 - 70°
Wavelength 650 nm
Tilt reading angle -45 - 45°
Scanner type 1D
Read rate (max) 400 reads/s
Pitch reading angle -65 - 65°
Ports & interfaces
Connectivity technology Wired
Operating frequency 433 MHz
Standard interfaces RS-232
Performance
International Protection (IP) code IP42
Product colour Black
Buzzer Yes
Design
Type Handheld bar code reader
International Protection (IP) code IP42
Product colour Black
Power
Power source type Battery
Input voltage 4.75 - 14 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 1400 mAh
Weight & dimensions
Width 91 mm
Depth 41 mm
Height 163 mm
Weight 190 g
Base weight 215 g
Technical details
Type Handheld bar code reader
International Protection (IP) code IP42
Product colour Black
Buzzer Yes
Harmonized System (HS) code 84716070
Packaging data
Cables included RS-232
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 0 - 90%
Packaging content
Cables included RS-232
Logistics data
Harmonized System (HS) code 84716070
