Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow

SKU PM9100-DK433RB
£666.67
£666.67
Only 6 left

Datalogic

Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow

SKU PM9100-DK433RB
£666.67
Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow

1D, 433 MHz, 48x132, RS-232, RS-485, IP65, Li-Ion 2150 mAh, 212x110x74 mm, 435 g

Description

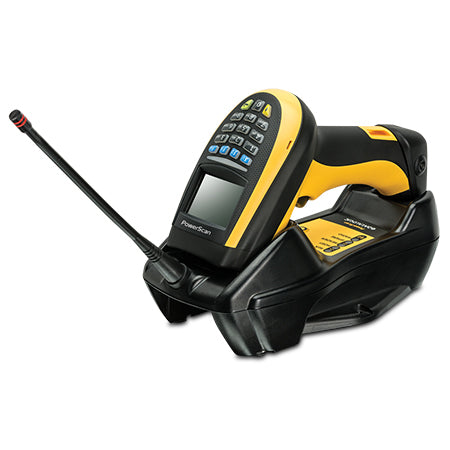

The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.

The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.

The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.

All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C.
2D (matrix & stacked) barcodes supported Not supported
Yaw reading angle -70 - 70°
Tilt reading angle -45 - 45°
Sensor type LED
Scanner type 1D
Pitch reading angle -75 - 75°
Ports & interfaces
Wireless range 50 m
Connectivity technology Wired & Wireless
Operating frequency 433 MHz
Performance
Protection features Shock resistant
LED indicators Yes
Keys quantity 16 keys
Built-in display Yes
Backlight display Yes
International Protection (IP) code IP65
Display resolution 48 x 132 pixels
Product colour Black, Yellow
Design
Type Handheld bar code reader
Protection features Shock resistant
LED indicators Yes
Keys quantity 16 keys
International Protection (IP) code IP65
Product colour Black, Yellow
Power
Power consumption 500 mA
Power source type Battery
Battery life 4 h
Input voltage 10 - 30 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2150 mAh
Weight & dimensions
Base dimensions (WxDxH) 240 x 108 x 95 mm
Width 212 mm
Depth 110 mm
Height 74 mm
Weight 435 g
Technical details
Type Handheld bar code reader
Protection features Shock resistant
LED indicators Yes
Keys quantity 16 keys
Built-in display Yes
Backlight display Yes
International Protection (IP) code IP65
Display resolution 48 x 132 pixels
Product colour Black, Yellow
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Cables included No
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Packaging content
Cables included No
Logistics data
Harmonized System (HS) code 84716070
