Datalogic

Datalogic PowerScan PD9531 Handheld bar code reader 1D/2D Photo diode Black, Yellow

SKU PD9531-DPMK2
£667.77
£667.77
In stock 63 left

Datalogic

Datalogic PowerScan PD9531 Handheld bar code reader 1D/2D Photo diode Black, Yellow

SKU PD9531-DPMK2
£667.77

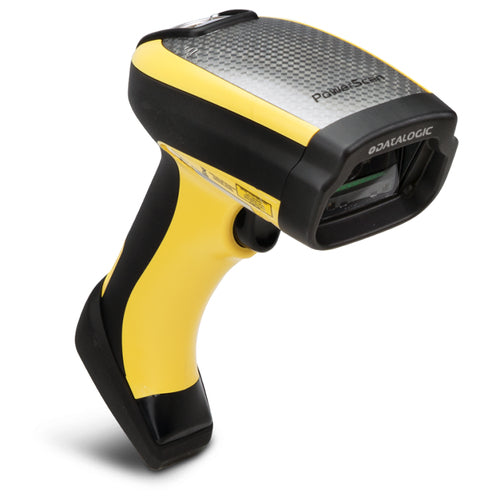

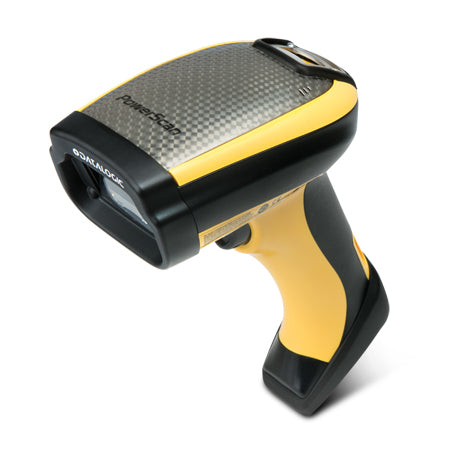

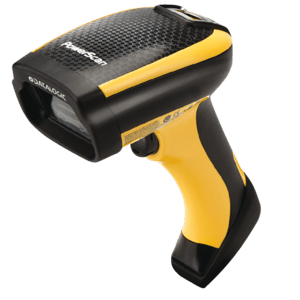

Datalogic PowerScan PD9531 Handheld bar code reader 1D/2D Photo diode Black, Yellow

PowerScan D9531, Direct Part Marking Evo, RS-232 Kit (Kit inc. Scanner and Cable CAB-434.)

Key Features

  • Water and Particulate Sealing Rating IP65
  • Enhanced Decoding software will support any kind of Direct Part Marking (DPM) technology
  • Handle shape, well-balanced

Description

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

The PowerScan™ PD9530-DPM Evo reader is a rugged handheld area imager specifically addressed for DPM applications. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the type of DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

The intuitive aiming system provides the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.

Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.

Specifications

Scanning
Type Handheld bar code reader
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Yaw reading angle 0 - 40°
Tilt reading angle 0 - 360°
Sensor type Photo diode
Scanner type 1D/2D
Pitch reading angle 0 - 40°
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 864 x 544 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces Keyboard wedge, RS-232, USB
Performance
International Protection (IP) code IP65
Product colour Black, Yellow
Light levels (direct sunlight) 0 - 100000 lx
Design
Type Handheld bar code reader
International Protection (IP) code IP65
Product colour Black, Yellow
Power
Power source type DC
Input voltage 5 V
Weight & dimensions
Width 74 mm
Depth 110 mm
Height 212 mm
Weight 330 g
Technical details
Type Handheld bar code reader
International Protection (IP) code IP65
Product colour Black, Yellow
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Cables included RS-232
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Light levels (direct sunlight) 0 - 100000 lx
Packaging content
Cables included RS-232
Logistics data
Harmonized System (HS) code 84716070

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
