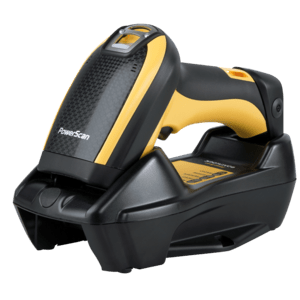

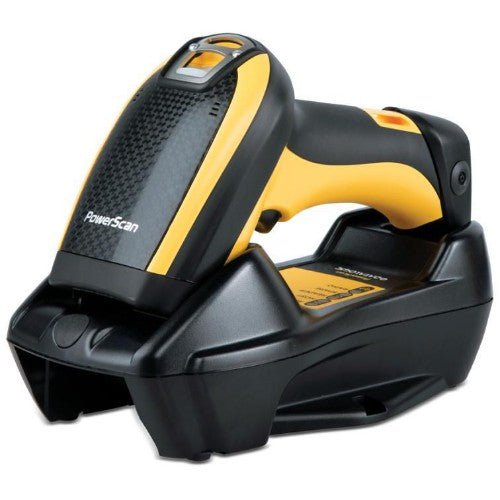

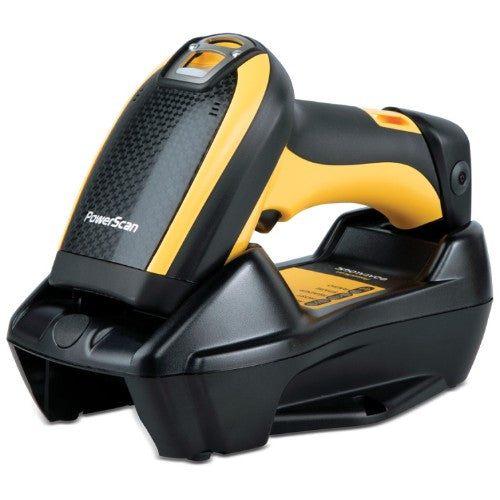

Datalogic PowerScan PBT9100 Handheld bar code reader 1D LED Black, Yellow

1D, Bluetooth 3.0, RS-232, USB, Li-Ion 2150 mAh, 212x110x74 mm, 405 g, USB kit

Description

The PowerScan PBT9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features standard Bluetooth wireless technology. This linear imager introduces Datalogic’s innovative new scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.

The PBT9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.

The PBT9100 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.

All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Not supported
Yaw reading angle -70 - 70°
Tilt reading angle -45 - 45°
Sensor type LED
Scanner type 1D
Pitch reading angle -75 - 75°
Ports & interfaces
Wireless range 100 m
Bluetooth version 3.0+HS
Standard interfaces USB
Performance
Protection features Shock resistant
LED indicators Yes
International Protection (IP) code IP65
Product colour Black, Yellow
Design
Type Handheld bar code reader
Protection features Shock resistant
LED indicators Yes
International Protection (IP) code IP65
Product colour Black, Yellow
Power
Power consumption 500 mA
Power source type Battery
Battery life 4 h
Number of reads per charge 50000
Input voltage 10 - 30 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2150 mAh
Weight & dimensions
Base dimensions (WxDxH) 240 x 108 x 95 mm
Width 212 mm
Depth 110 mm
Height 74 mm
Weight 405 g
Base weight 380 g
Technical details
Type Handheld bar code reader
Protection features Shock resistant
LED indicators Yes
International Protection (IP) code IP65
Product colour Black, Yellow
Harmonized System (HS) code 84716070
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
