Datalogic

Datalogic Magellan 3610VSi Built-in bar code reader 1D/2D Black

SKU M3610-010210-00604
£319.66
£319.66
In stock 23 left

Datalogic

Datalogic Magellan 3610VSi Built-in bar code reader 1D/2D Black

SKU M3610-010210-00604
£319.66

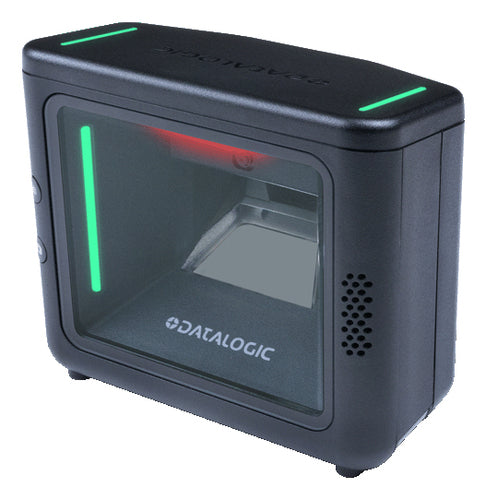

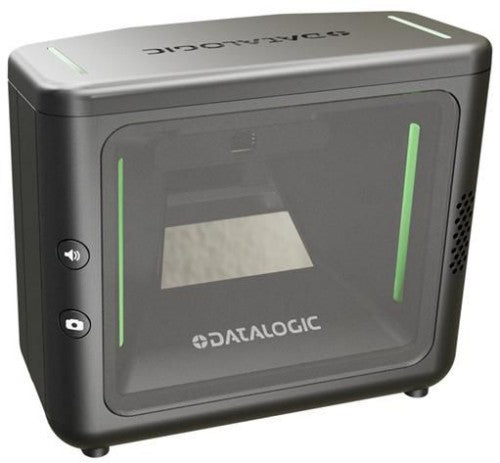

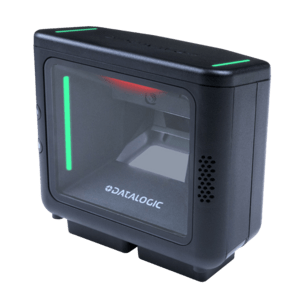

Datalogic Magellan 3610VSi Built-in bar code reader 1D/2D Black

Magellan 3610VSi, Wall/Counter Mount, USB Keyboard Type A Ext Pwr 15' Cable

Description

Built for modern self-checkout
The Magellan 3600VSi is Datalogic’s next-generation vertical single-plane scanner, engineered for self-checkout systems and compact retail environments where space efficiency, speed, and reliability are critical.

As retailers increasingly deploy thin SCO kiosks and space-optimized counters, the 3600VSi delivers high-performance scanning in a compact vertical form factor, maintaining fast and intuitive checkout even in constrained layouts.

Intelligent loss prevention, built in
The Magellan 3600VSi integrates UHF RFID directly into the scanner, enabling hybrid barcode and RFID reading in a single scan. This supports end-to-end product traceability across inventory, checkout, and returns, providing stronger protection at the POS than traditional EAS systems.

A built-in 1 MP color video camera supports checkout surveillance and item recognition when paired with external software, helping retailers identify mis-scans, ticket switching, and suspicious behavior in real time.

Optimized vertical design for tight spaces
The vertical architecture of the Magellan 3600VSi maximizes the scan envelope while minimizing footprint, making it ideal for slim self-checkout kiosks and compact cashier counters.

Customers can present items naturally and scan full baskets with confidence, while high motion tolerance and adaptive decoding reduce rescans and limit the need for staff intervention.

Faster throughput, smoother SCO flow
The Magellan 3600VSi delivers 25% faster throughput on 2D codes than the previous generation, with best-in-class 1D and 2D throughput and motion tolerance. The reliability has also significantly improved in reading codes on mobile screens and reading from damaged or poorly printed labels.


Specifications

Scanning
Type Built-in bar code reader
Linear (1D) barcodes supported GS1 DataBar
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, QR Code
Yaw reading angle -65 - 65°
Tilt reading angle 0 - 360°
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 86100 lx
Ports & interfaces
Connectivity technology Wired
USB version 2.0
Standard interfaces RS-232, USB
Performance
Built-in display No
International Protection (IP) code IP52
Product colour Black
Image formats supported BMP, JPEG, TIFF
Print contrast 25%
Light levels (direct sunlight) 0 - 86100 lx
Design
Type Built-in bar code reader
International Protection (IP) code IP52
Product colour Black
Power
Power source type DC
Power consumption (typical) 3 W
Input frequency 50/60 Hz
Input voltage 100 - 240 V
Weight & dimensions
Width 137 mm
Depth 152 mm
Height 84 mm
Weight 600 g
Technical details
Type Built-in bar code reader
Built-in display No
International Protection (IP) code IP52
Product colour Black
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 86100 lx
