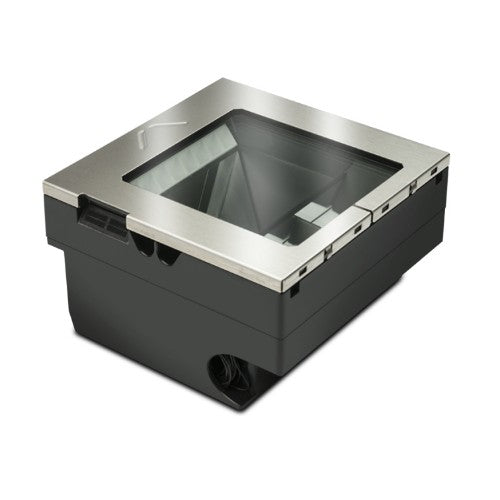

Datalogic Magellan 3550HSi Fixed bar code reader 1D/2D LED Black, Silver

SKU M3551-010210-07604
£578.89
£578.89
In stock 200 left

Datalogic

Datalogic Magellan 3550HSi Fixed bar code reader 1D/2D LED Black, Silver

SKU M3551-010210-07604
£578.89
Datalogic Magellan 3550HSi Fixed bar code reader 1D/2D LED Black, Silver

1D/2D, LED, USB, Black/Silver

Description

Features

- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design

Overview

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Specifications

Scanning
Type Fixed bar code reader
Working distance 10.2 cm
Sensor type LED
Scanner type 1D/2D
Light levels (direct sunlight) 0 - 86100 lx
Optical sensor resolution (W x H) 1280 x 1024 pixels
Ports & interfaces
Connectivity technology Wired
Cable length 4.5 m
Standard interfaces USB
Performance
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Silver
Certification EN62471, IEC62471
Buzzer Yes
Light levels (direct sunlight) 0 - 86100 lx
Design
Type Fixed bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Silver
Certification EN62471, IEC62471
Power
Power source type AC
Power consumption (typical) 4 W
Input frequency 50/60 Hz
Input voltage 100-240 V
Weight & dimensions
Width 152 mm
Depth 152 mm
Height 87 mm
Weight 980 g
Technical details
Type Fixed bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Silver
Certification EN62471, IEC62471
Buzzer Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 86100 lx
Logistics data
Harmonized System (HS) code 84716070
