Datalogic

Datalogic Magellan 3510HSi Built-in bar code reader 1D/2D Black

SKU M3511-010200-00403
£485.26
£485.26
In stock 175 left

Datalogic

Datalogic Magellan 3510HSi Built-in bar code reader 1D/2D Black

SKU M3511-010200-00403
£485.26

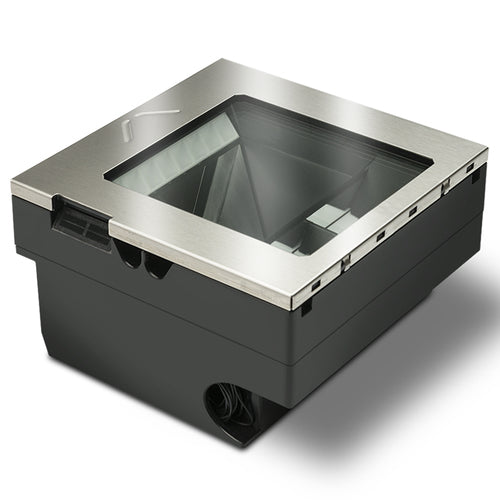

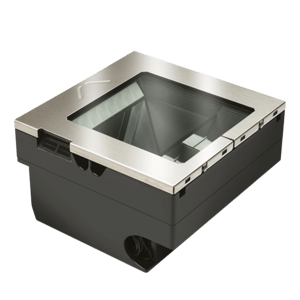

Datalogic Magellan 3510HSi Built-in bar code reader 1D/2D Black

Magellan 3510HSi, Sapphire Platter, Default Configuration, 1D/2D Scanning, No Mount, No Power Supply, 15' USB OEM POT cable

Key Features

  • Advanced digital imaging provides class-leading performance and reliability
  • Seamless 1D, 2D and Digimarc® digital watermark reading
  • Smoothly reads all bar codes, whether displayed on cell phones or printed
  • Subtle, adaptive illumination for user comfort
  • Solid-state electronics for silent operation and superior reliability
  • Powers from single Type A USB port- 2.5W, available Magellan Customer Service Scanner (CSS) with omni-mount for reading cell phones, coupons and loyalty cards
  • Software driven - flexible and upgradeable
  • Image capture
  • Micro SD card slot
  • Multiple interfaces in every unit
  • Powered USB auxiliary port - Not enabled when connected to 5V USB Type A host port
  • Checkpoint Systems and Tyco Sensormatic EAS compatible
  • Diagnostics reporting
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Description

IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.

With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.

ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.

Specifications

Scanning
Type Built-in bar code reader
Linear (1D) barcodes supported GS1 DataBar
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, QR Code, WaterCode
Yaw reading angle -75 - 75°
Tilt reading angle 0 - 360°
Scanner type 1D/2D
Pitch reading angle 0 - 65°
Optical sensor resolution (W x H) 1280 x 800 pixels

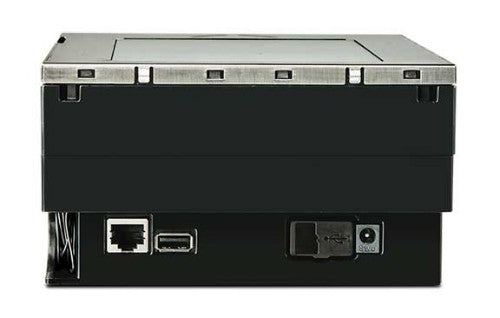

Ports & interfaces
Connectivity technology Wired
USB 2.0 ports quantity 2
Standard interfaces RS-232, USB
Performance
International Protection (IP) code IP52
Product colour Black
Buzzer Yes
Image formats supported BMP, JPEG
Compatible memory cards MicroSD (TransFlash)
Ambient lighting Yes
Print contrast 25%
Design
Type Built-in bar code reader
International Protection (IP) code IP52
Product colour Black
Power
Power source type DC, USB
Power consumption (typical) 2.1 W
Input frequency 50 - 60 Hz
Power consumption (standby) 1.25 W
Input voltage 100 - 240 V
Weight & dimensions
Width 152 mm
Depth 152 mm
Height 87 mm
Weight 980 g
Technical details
Type Built-in bar code reader
USB 2.0 ports quantity 2
International Protection (IP) code IP52
Product colour Black
Buzzer Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Cables included USB
External power adapter No
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 10 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Packaging content
Cables included USB
External power adapter No
Logistics data
Harmonized System (HS) code 84716070
Other features
USB 2.0 ports quantity 2
