Datalogic

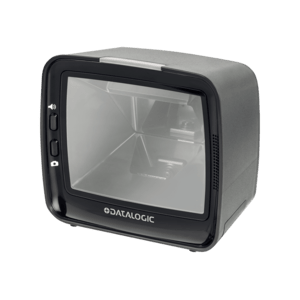

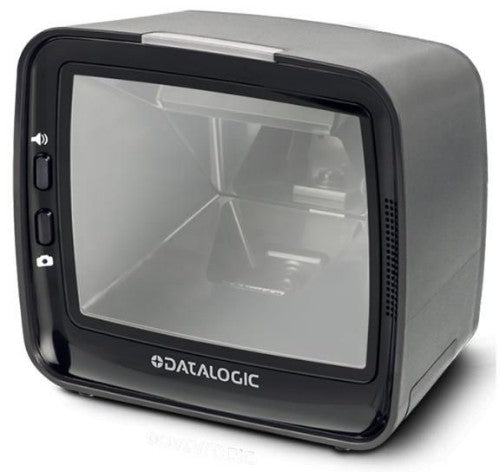

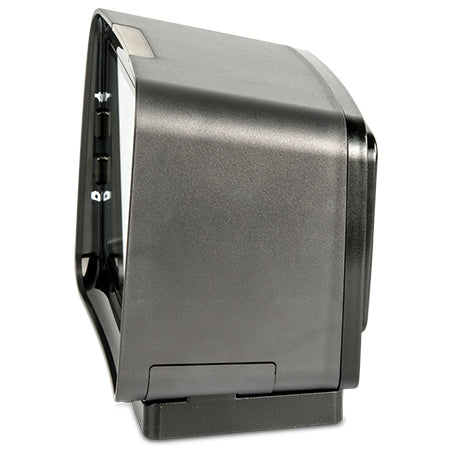

Datalogic Magellan 3450VSi Fixed bar code reader 1D/2D LED Black

SKU M3450-010210-07604
£427.93
£427.93
In stock 196 left

Datalogic

Datalogic Magellan 3450VSi Fixed bar code reader 1D/2D LED Black

SKU M3450-010210-07604
£427.93
Datalogic Magellan 3450VSi Fixed bar code reader 1D/2D LED Black

1D/2D, 39 Million Reads/s, 152x94x137mm, 600g, Black

Description

Magellan 3450VSi

The Magellan 3450VSi scanner offers class leading performance on 1D and 2D codes, unmatched reliability and versatility, all in a compact size.

Features

- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design

Overview

The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Specifications

Scanning
Type Fixed bar code reader
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, MaxiCode, QR Code
Yaw reading angle -75 - 75°
Tilt reading angle 0 - 360°
Sensor type LED
Scanner type 1D/2D
Read rate (max) 39000000 reads/s
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 86000 lx
Ports & interfaces
Connectivity technology Wired
Cable length 4.5 m
Standard interfaces USB, Keyboard wedge
Performance
International Protection (IP) code IP52
Product colour Black
Light levels (direct sunlight) 0 - 86000 lx
Design
Type Fixed bar code reader
International Protection (IP) code IP52
Product colour Black
Power
Power source type AC
Power consumption (typical) 3 W
Input frequency 50-60 Hz
Power consumption (standby) 2.6 W
Input voltage 100-240 V
Weight & dimensions
Width 152 mm
Depth 94 mm
Height 137 mm
Weight 600 g
Technical details
Type Fixed bar code reader
International Protection (IP) code IP52
Product colour Black
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 86000 lx
Logistics data
Harmonized System (HS) code 84716070
