1D/2D, RS-232, IP52, 152x137x94mm, 600g, Black/Grey

Description

Overview

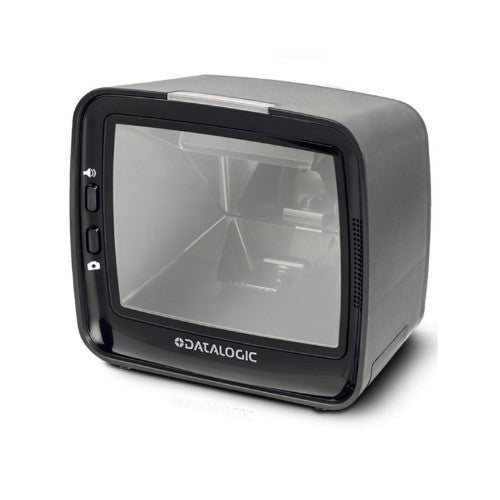

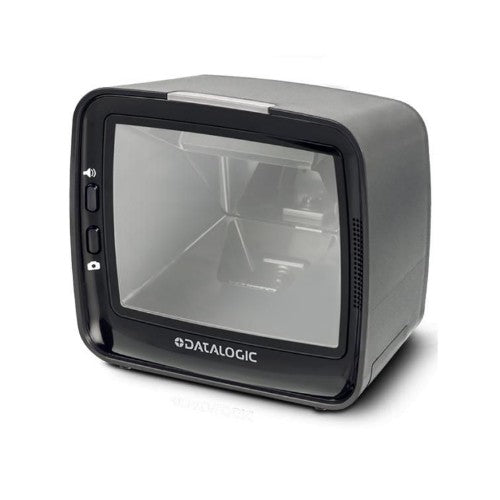

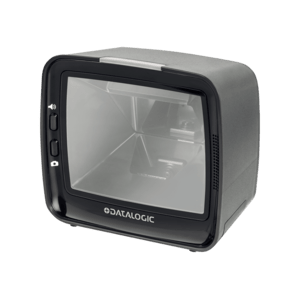

The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Specifications

Scanning
Type Built-in bar code reader
2D (matrix & stacked) barcodes supported Aztec Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Yaw reading angle -75 - 75°
Working distance 14 cm
Tilt reading angle 0 - 360°
Sensor type Laser
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 86100 lx
Ports & interfaces
Connectivity technology Wired
Cable length 4.5 m
Standard interfaces RS-232
Performance
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Grey
Certification EN62471, IEC62471
Buzzer Yes
Light levels (direct sunlight) 0 - 86100 lx
Design
Type Built-in bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Grey
Certification EN62471, IEC62471
Power
Power source type AC
Power consumption (typical) 3.8 W
Input frequency 50-60 Hz
Power consumption (standby) 2.6 W
Input voltage 100-240 V
Weight & dimensions
Width 152 mm
Depth 137 mm
Height 94 mm
Weight 600 g
Technical details
Type Built-in bar code reader
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Grey
Certification EN62471, IEC62471
Buzzer Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 86100 lx
Logistics data
Harmonized System (HS) code 84716070
