Datalogic

Datalogic Magellan 1500i Fixed bar code reader 2D LED Black

SKU MG1501-10211-0200
£215.37
£215.37
In stock 1038 left

Datalogic

Datalogic Magellan 1500i Fixed bar code reader 2D LED Black

SKU MG1501-10211-0200
£215.37

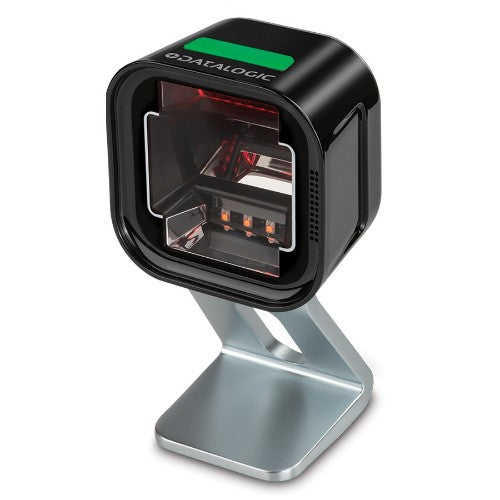

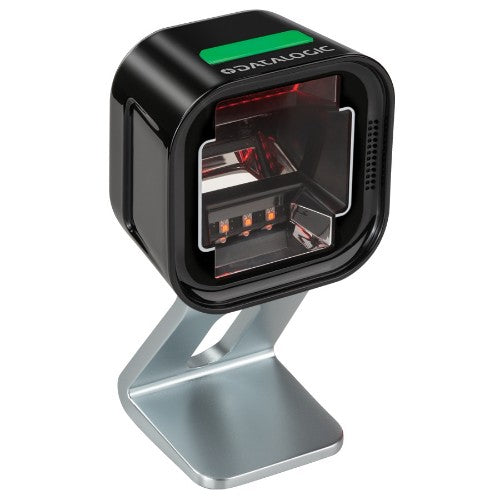

Datalogic Magellan 1500i Fixed bar code reader 2D LED Black

Magellan 1500i, Black, Std Configuration, 2D, Tilting Stand with Magnetic Base, USB A Cable

Description

Magellan 1500i
The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The addition of Digimarc® Barcodes watermark decoding makes this a uniquely capable scanner in the presentation category.

Datalogic’s Magellan 1500i scanner is a high performance presentation scanner for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i pairs imaging scanning expertise developed for our larger scanners with an innovative, compact design to create the most powerful presentation scanner on the market. The addition of Digimarc Barcode decoding makes the Magellan 1500i scanner uniquely capable of handling both current and future scanning needs.

The Magellan 1500i uses a high performance megapixel sensor and custom optics to create a large reading area capable of reading at distances up to 25 cm and with 1D sweep speeds up to 1.5 m/s. Powerful decoding algorithms provide unmatched performance on a variety of 1D and 2D labels, including hard-to-read, truncated and damaged codes. The large reading area and sweep performance of the Magellan 1500i scanner makes scanning easy and intuitive even for novice users.

The consistent, comfortable illumination enables seamless reading of 1D and 2D bar codes from printed or mobile sources while reducing reflection and eliminating flickering that can cause operator discomfort.

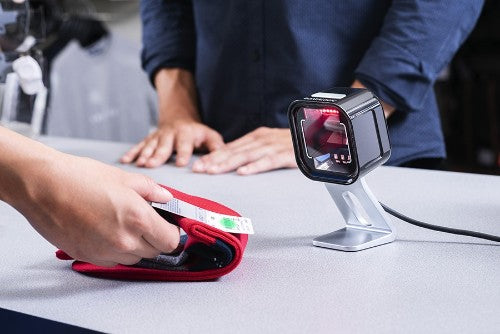

Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. This turns on an LED aimer, while ‘Green Spot’ technology provides good-read confirmation directly on the code. When placed back on the counter, the scanner seamlessly returns to stand mode.

With its small footprint and attractive design, the Magellan 1500i scanner compliments any point of sale or service environment. Classic black and white enclosures pair with a variety of mounting options to make this a versatile, powerful product in an attractive, compact package.

Specifications

Scanning
Scanner resolution 0.13 mm
Type Fixed bar code reader
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, MaxiCode, QR Code
Yaw reading angle -75 - 75°
Tilt reading angle 0 - 360°
Sensor type LED
Scanner type 2D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 86.1 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Ports & interfaces
Connectivity technology Wired
USB version 2.0
Standard interfaces USB
Performance
Housing material Plastic
International Protection (IP) code IP52
Product colour Black
Certification EN62471, IEC62471
Buzzer Yes
Image formats supported BMP, JPEG
Light levels (direct sunlight) 0 - 86.1 lx
Design
Type Fixed bar code reader
Housing material Plastic
International Protection (IP) code IP52
Product colour Black
Certification EN62471, IEC62471
Power
Power consumption 500 mA
Power source type USB
Input voltage 5 V
Weight & dimensions
Width 60 mm
Depth 75 mm
Height 150 mm
Weight 240 g
Technical details
Type Fixed bar code reader
Housing material Plastic
International Protection (IP) code IP52
Product colour Black
Certification EN62471, IEC62471
Buzzer Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 86.1 lx
Logistics data
Harmonized System (HS) code 84716070
