Datalogic HD3430-WHK1S barcode reader Handheld bar code reader 1D/2D CMOS White

1D/2D, CMOS, USB+RS-232, 0 - 100000lx, 150g

Description

OVERVIEW

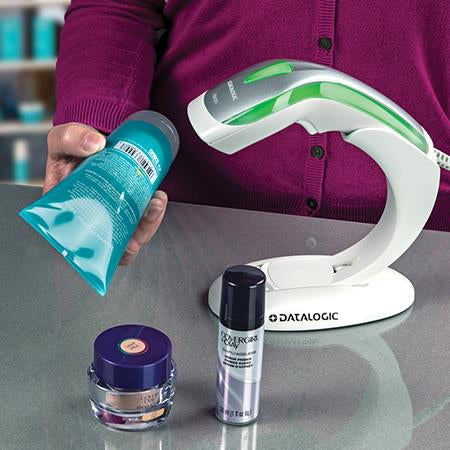

Datalogic is pleased to announce the release of the Heron HD3430 2D area imager with unmatched elegance and advanced technology for the modern point-of-sale.

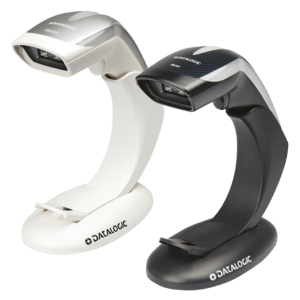

The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand.

FEATURES

Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image capture
Multiple changing color LEDs on sides and top
Top of the market illumination and aiming system
Polyphonic speaker for a wide variety of choices regarding audio feedback
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Automatic switching between handheld and hands-free operations

APPLICATIONS

Non-food specialty stores such as Fashion Clothes, Cosmetics, Jewelry, Perfume, etc.
Duty-free and Airport stores
Commercial Services: Banks, Insurance Companies and Utilities
The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Yaw reading angle -60 - 60°
Tilt reading angle 0 - 360°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 100000 lx
Ports & interfaces
Connectivity technology Wired
USB version 2.0
Standard interfaces USB, RS-232
Performance
Programming function Yes
LED indicators Yes
Product colour White
Light levels (direct sunlight) 0 - 100000 lx
Design
Type Handheld bar code reader
LED indicators Yes
Product colour White
Power
Power consumption 500 mA
Power source type Battery
Input voltage 5 V
Weight & dimensions
Width 68 mm
Depth 153 mm
Height 152 mm
Weight 150 g
Technical details
Type Handheld bar code reader
LED indicators Yes
Product colour White
Programming function Yes
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 90%
Light levels (direct sunlight) 0 - 100000 lx
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
