Datalogic

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

SKU GD4520-BK-USB
£185.64
£185.64
In stock 95 left

Datalogic

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

SKU GD4520-BK-USB
£185.64
Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

2D Mpixel Imager, USB-only, Black

Description

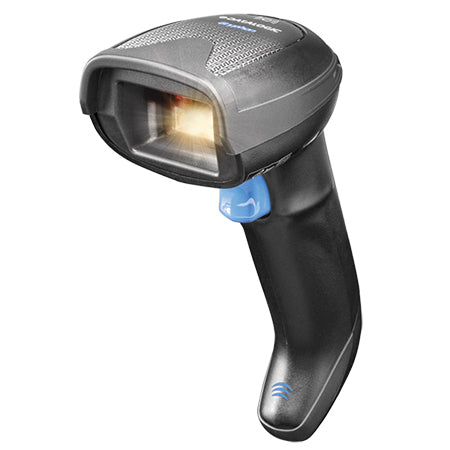

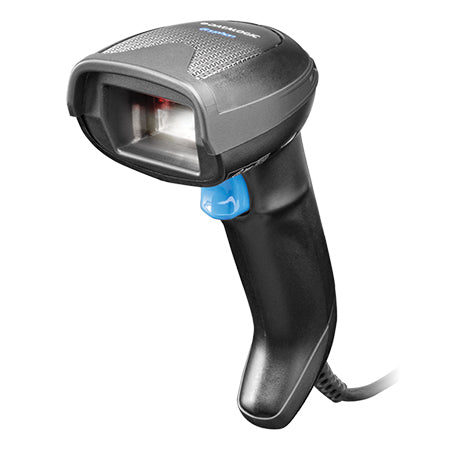

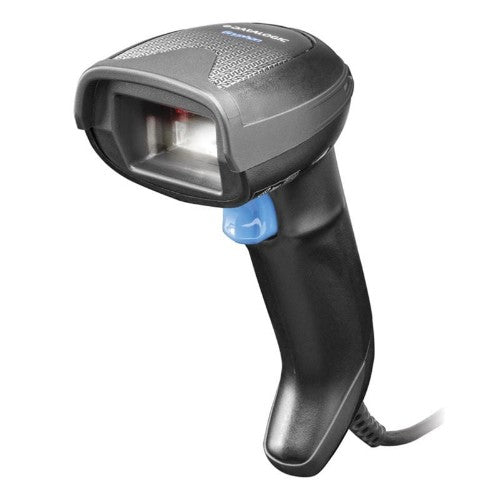

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

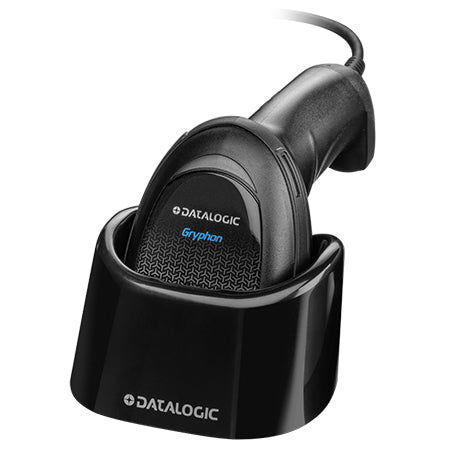

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Motion tolerance (cm/s) 88.9
Yaw reading angle -65 - 65°
Wavelength 650 nm
Tilt reading angle 0 - 360°
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
Performance
Protection features Shock resistant
Built-in display No
International Protection (IP) code IP52
Product colour Black
Certification IEC 60825 Class 2
Image formats supported BMP, JPEG
Light levels (direct sunlight) 0 - 100000 lx
Design
Type Handheld bar code reader
Protection features Shock resistant
International Protection (IP) code IP52
Product colour Black
Certification IEC 60825 Class 2
Power
Power consumption 300 mA
Power source type DC
Input voltage 5 V
Weight & dimensions
Width 68 mm
Depth 109 mm
Height 166 mm
Weight 161 g
Technical details
Type Handheld bar code reader
Protection features Shock resistant
Built-in display No
International Protection (IP) code IP52
Product colour Black
Certification IEC 60825 Class 2
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 95%
Light levels (direct sunlight) 0 - 100000 lx
Logistics data
Harmonized System (HS) code 84716070
