Datalogic

Datalogic Gryphon - GM4500 - BT - W. Cradle

SKU GM4500-BK-433K1
£457.31
£457.31
In stock 157 left

Datalogic

Datalogic Gryphon - GM4500 - BT - W. Cradle

SKU GM4500-BK-433K1
£457.31

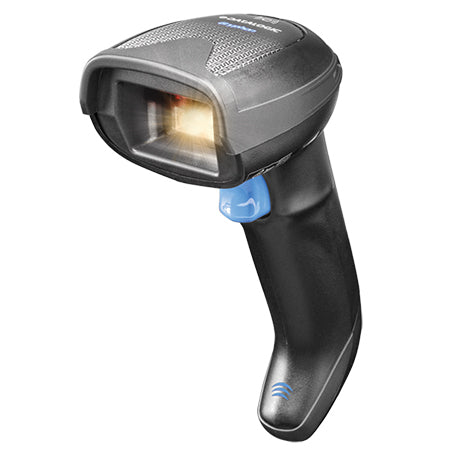

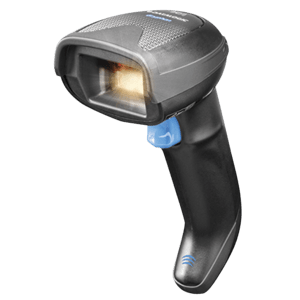

Datalogic Gryphon - GM4500 - BT - W. Cradle

Gryphon GM4500, Kit, USB, 433 MHz, Black (Kit includes scanner, WLC4090-BK-433 base and USB cable 90A052258)

Description

The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.

Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.

The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model).

One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Yaw reading angle -65 - 65°
Wavelength 650 nm
Tilt reading angle 0 - 360°
Sensor type Laser
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Ports & interfaces
Wireless range 50 m
Connectivity technology Wired & Wireless
Operating frequency 433 MHz
Standard interfaces RF Wireless, USB
Performance
International Protection (IP) code IP52
Product colour Black
Light levels (direct sunlight) 0 - 100000 lx
Design
Type Handheld bar code reader
International Protection (IP) code IP52
Product colour Black
Power
Power source type Battery
Charging time 4 h
Battery voltage 12 V
Number of reads per charge 80000
Input voltage 4.5 - 14 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 3250 mAh
Weight & dimensions
Width 109 mm
Depth 68 mm
Height 166 mm
Weight 235 g
Technical details
Type Handheld bar code reader
International Protection (IP) code IP52
Product colour Black
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Charging base Yes
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Light levels (direct sunlight) 0 - 100000 lx
Battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 3250 mAh
Packaging content
Charging base Yes
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
