Datalogic

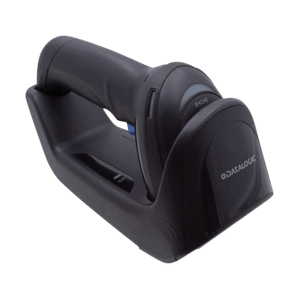

Datalogic Gryphon GM4200 Handheld bar code reader 1D CCD Black

SKU GM4200-BK-433-WLC
£107.60
£107.60
In stock 80 left

Datalogic

Datalogic Gryphon GM4200 Handheld bar code reader 1D CCD Black

SKU GM4200-BK-433-WLC
£107.60
Datalogic Gryphon GM4200 Handheld bar code reader 1D CCD Black

Linear Imager, 433 MHz, 1D, Wireless Charging, IP52, 166x68x109 mm, Black

Key Features

  • Enhanced linear imaging technology for superior scanning and Depth of Field
  • Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
  • Datalogic’s distinctive ‘soft line viewfinder’ to easily target the barcode to be read
  • Datalogic’s ‘Green Spot’ technology and 3GL (3 Green Lights) for superior good-read feedback
  • Motionix motion-sensing technology for seamless reading mode transitions
  • Choice of Bluetooth wireless technology or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
  • Wireless battery charging system
  • Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
  • Long lasting replaceable Lithium-Ion battery
  • Multi-interface options: USB type C / USB only or multi-interface USB type C / USB /RS-232 / Keyboard Wedge multi-interface
  • Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Description

The Gryphon 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System narrow band radio (GM4200).

Specifications

Scanning
Scanner resolution 0.077 mm
Type Handheld bar code reader
Linear (1D) barcodes supported GS1 DataBar
Yaw reading angle -65 - 65°
Tilt reading angle -45 - 45°
Sensor type CCD
Scanner type 1D
Read rate (max) 400 reads/s
Pitch reading angle -65 - 65°
Light levels (direct sunlight) 0 - 130000 lx
Ports & interfaces
Wireless range 50 m
Connectivity technology Wireless
Operating frequency 433 MHz
Standard interfaces RF Wireless
Performance
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Light levels (direct sunlight) 0 - 130000 lx
Design
Type Handheld bar code reader
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Power
Power source type Battery
Number of batteries supported 1
Charging time 4 h
Battery voltage 3.6 V
Number of reads per charge 80000
Input voltage 4.5 - 14 V
Battery type Built-in battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2550 mAh
Weight & dimensions
Width 166 mm
Depth 68 mm
Height 109 mm
Weight 235 g
Technical details
Type Handheld bar code reader
Protection features Electrostatic Discharge (ESD) protection
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) -10 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Light levels (direct sunlight) 0 - 130000 lx
Logistics data
Harmonized System (HS) code 84716070
