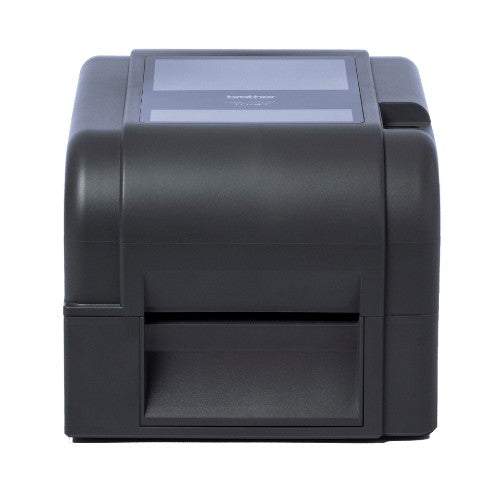

Brother TD-4520TN label printer Direct thermal / Thermal transfer 300 x 300 DPI 127 mm/sec Wired Ethernet LAN

Print high-quality, continuous labels using media up to 112mm/4.41-inch wide.

Key Features

  • 300dpi high resolution printing for crisp text and barcodes
  • Thermal transfer print using high capacity ink ribbons
  • Up to 127mm/second (5 ips) print speed
  • USB, wired ethernet and serial ports as standard
  • Supports popular printer languages including ZPL/ZPL2, EPL and DPL
  • Free label design software available via download

Reasons To Buy

Industry standard printer commands, as standard

Print from Windows using the standard printer driver, or integrate the Brother TD-4520TN label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.

Fast print speed and processing to improve efficiency

A fast print speed of 127mm/second (5 inches per second) means less time waiting for your labels to print and more time being productive.

Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4520TN will have no problems connecting to your existing equipment and infrastructure.

Optional accessories to further improve productivity

Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.

High quality thermal transfer printing

The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so can the Brother TD-4520TN label printer.

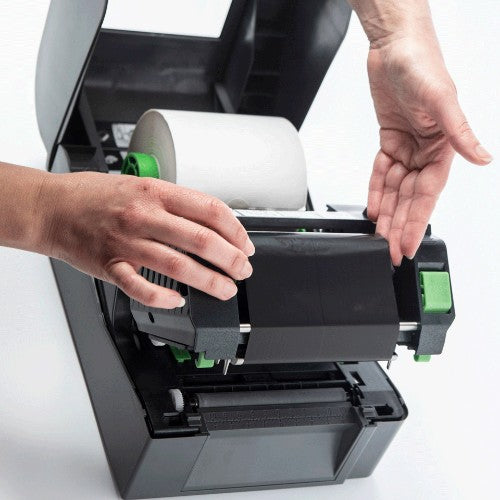

High capacity thermal transfer print ribbons in various materials depending on application

Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

Description

The TD-4520TN creates high resolution labels that last. Thermal transfer technology means labels are especially durable, making them suitable for a wide range of tasks in sectors like transport and logistics, retail, healthcare and food traceability. Operation is easy with BarTender and SAP compatibility*, and auto media configuration delivers better usability. For a more cost-efficient print option, direct thermal technology is built-in too, letting you print high-quality receipts, shipping labels and tickets.

Specifications

Print quality
Maximum resolution 300 x 300 DPI
Maximum print height 10.5 cm
Printing
Colour No
Print speed 127 mm/sec
Maximum resolution 300 x 300 DPI
Maximum print height 10.5 cm
Print technology Direct thermal / Thermal transfer
Maximum print length 11.43 m
Design
LED indicators Yes
Display No
Product colour Black
Built-in display No
Display
Display No
Network
Wi-Fi No
Ethernet LAN Yes
Memory
Internal memory 64 MB
Flash memory 128 MB
Paper handling
Maximum roll diameter 12.7 cm
Maximum label width 11.2 cm
Core diameter 2.54 cm
Ports & interfaces
USB 2.0 ports quantity 2
RS-232 ports 1
Connectivity technology Wired
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
USB port Yes
Performance
Languages support Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Number of languages 11
Built-in barcodes AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts 8
Internal memory 64 MB
Flash memory 128 MB
Page description languages DPL, EPL, ZPL, ZPL II
Power
AC adapter output current 2 A
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Server operating systems supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Warranty card Yes
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Product colour Black
Built-in barcodes AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts 8
Maximum label width 11.2 cm
LED indicators Yes
Country of origin China
Products per pallet 48 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet 48 pc(s)
Harmonized System (HS) code 84433210
Pallet type 800 x 1200 mm
System requirements
Linux operating systems supported Yes
Server operating systems supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 25 - 85%
Operating temperature (T-T) 10 - 90 °C
Operating relative humidity (H-H) 5 - 40%
Weight & dimensions
Width 275 mm
Depth 405 mm
Height 245 mm
Weight 3.15 kg
Package weight 3.93 kg
Packaging data
Package weight 3.93 kg
Quantity per pack 1 pc(s)
Packaging content
Software development kit (SDK) Yes
AC adapter included Yes
Warranty card Yes
Quick start guide Yes
Cables included AC, USB
Starter roll included Yes
Quantity per pack 1 pc(s)
Other features
Products per pallet 48 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet 48 pc(s)
Quantity per pack 1 pc(s)
Languages support Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Number of languages 11
LED indicators Yes
Country of origin China
Spare part retention 5 year(s)
Logistics data
Pallet gross height 16.2 cm
Master (outer) cases per pallet layer 8 pc(s)
Pallet gross weight 211.9 kg
Products per pallet 48 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet 48 pc(s)
Harmonized System (HS) code 84433210
