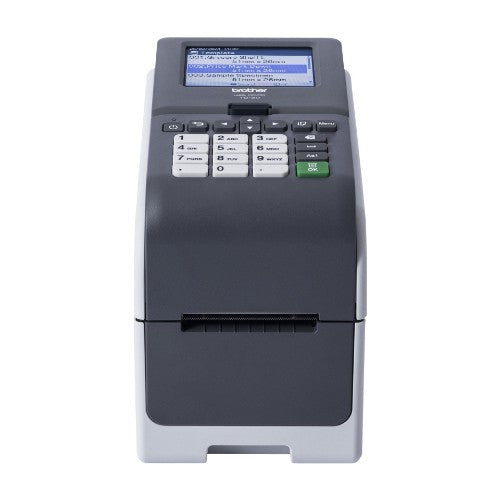

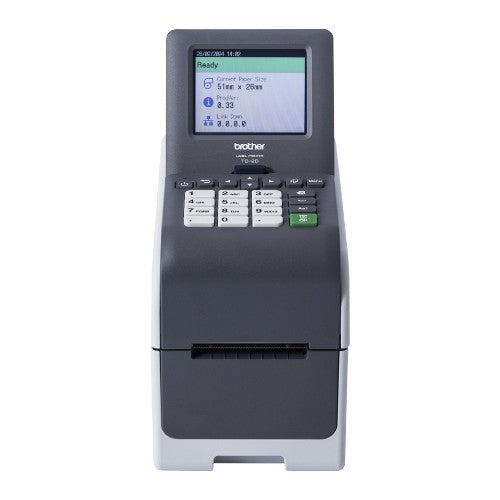

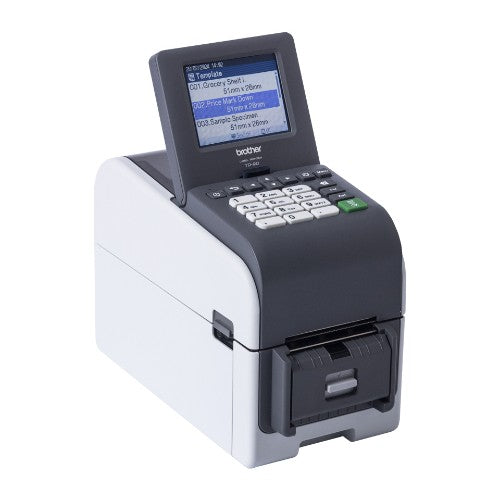

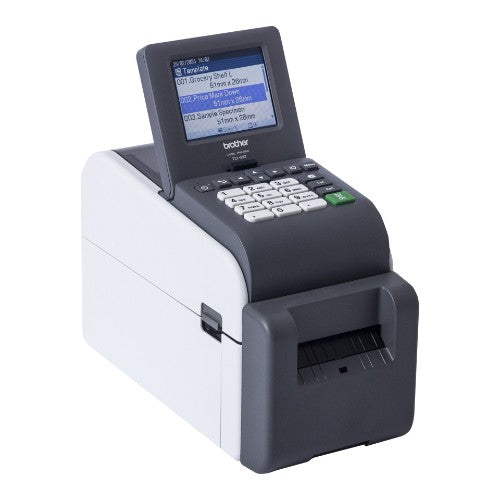

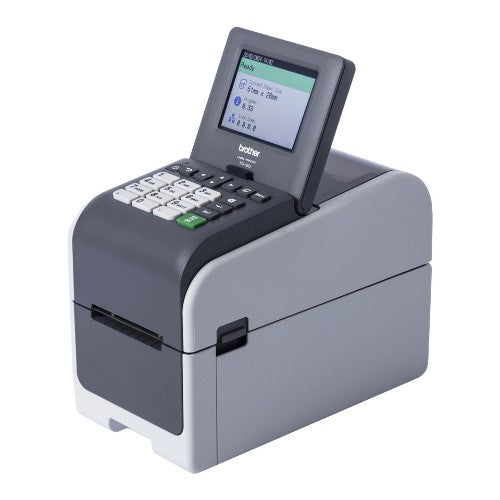

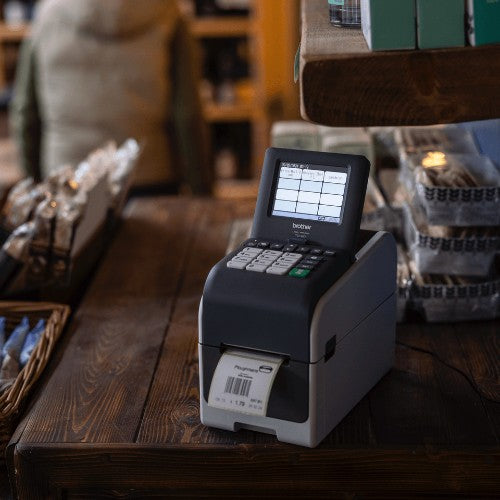

Brother TD-2320DSA203 label printer Direct thermal 203 x 203 DPI 152 mm/sec Wired Ethernet LAN

2" desktop network label printer

Key Features

  • High quality 203dpi print resolution
  • USB & network connectivity (serial connectivity available as optional accessory with PA-SCA-002)
  • ZPL 2, EPL 2, DPL printer language emulations
  • Built in colour touch screen with keyboard
  • 256MB RAM, 64MB Flash

Description

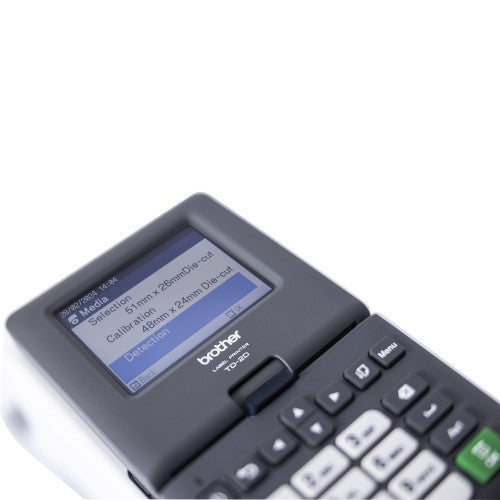

Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA203 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.

With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum printing width 5.9 cm
Printing
Minimum print length 6.4 mm
Colour No
Print speed 152 mm/sec
Maximum resolution 203 x 203 DPI
Maximum printing width 5.9 cm
Print technology Direct thermal
Display
Display diagonal 8.89 cm (3.5")
Colour display Yes
Network
Wi-Fi No
Ethernet LAN Yes
Memory
Internal memory 256 MB
Flash memory 64 MB

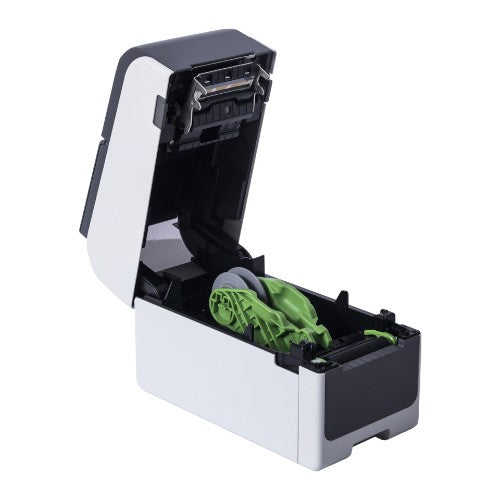

Paper handling
Media thickness 0.058 - 0.279 mm
Core diameter 3.81 cm

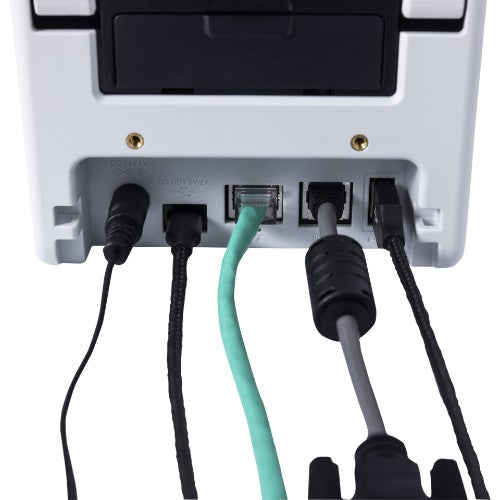

Ports & interfaces
Connectivity technology Wired
Wi-Fi No
Ethernet LAN Yes
USB port Yes
Performance
Built-in barcodes AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93
Internal memory 256 MB
Flash memory 64 MB
Design
Display diagonal 8.89 cm (3.5")
Colour display Yes
Product colour Black, Grey
Control type Buttons, Touch
Built-in display Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power source type AC
Technical details
Server operating systems supported Windows Server 2016, Windows Server 2019, Windows Server 2022
Windows operating systems supported Windows 10, Windows 11
Product colour Black, Grey
Built-in barcodes AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93
Country of origin Vietnam
Products per pallet 60 pc(s)
Layers per pallet 5 pc(s)
Master (outer) cases per pallet 20 pc(s)
Warranty period 3 year(s)
Pallet type 800 x 1200 mm
System requirements
Linux operating systems supported Yes
Server operating systems supported Windows Server 2016, Windows Server 2019, Windows Server 2022
Windows operating systems supported Windows 10, Windows 11
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 5 - 40 °C
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Package width 306 mm
Package depth 181 mm
Package height 325 mm
Width 119 mm
Depth 224 mm
Height 176 mm
Weight 1.77 kg
Package weight 2.9 kg
Packaging data
Package width 306 mm
Package depth 181 mm
Package height 325 mm
Package weight 2.9 kg
Packaging content
Cables included AC, USB
Other features
Products per pallet 60 pc(s)
Layers per pallet 5 pc(s)
Master (outer) cases per pallet 20 pc(s)
Country of origin Vietnam
Warranty period 3 year(s)
Spare part retention 5 year(s)
Logistics data
Pallet gross height 17.5 cm
Master (outer) cases per pallet layer 4 pc(s)
Pallet gross weight 631.2 kg
Products per pallet 60 pc(s)
Layers per pallet 5 pc(s)
Master (outer) cases per pallet 20 pc(s)
