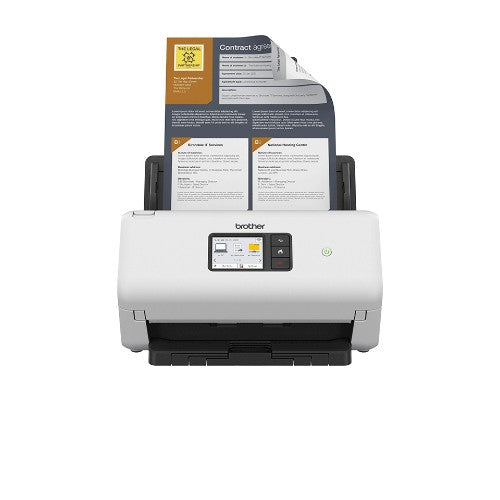

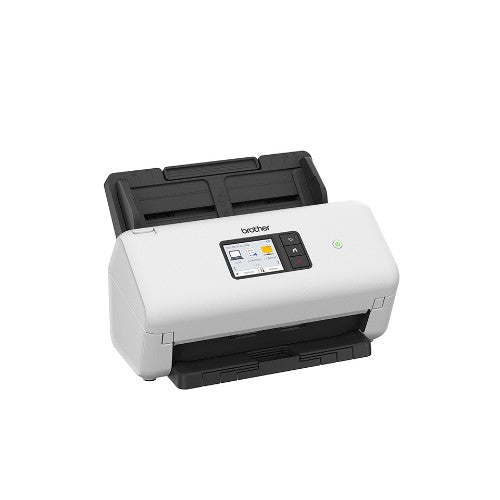

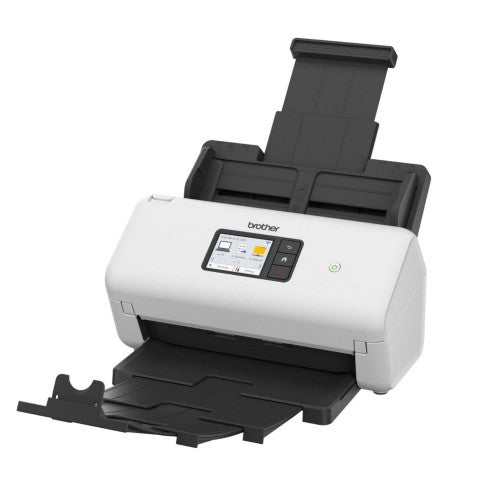

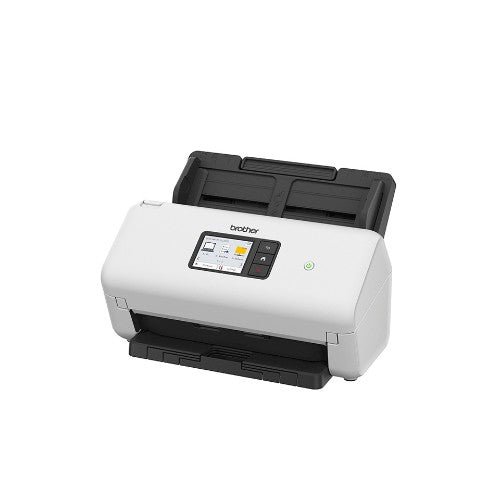

Brother ADS-4550W ADF scanner 600 x 600 DPI Black, White

SKU ADS4550WZU1
£398.94
£398.94
Only 8 left

Brother

Brother ADS-4550W ADF scanner 600 x 600 DPI Black, White

SKU ADS4550WZU1
£398.94
Brother ADS-4550W ADF scanner 600 x 600 DPI Black, White

ADS-4550W, Dual CIS, 35 ppm, 600 x 600 dpi, ADF, WiFi, LAN, USB, 24V, 1.9A, 2.70 kg

Key Features

  • Scan up to 35 pages per minute
  • 2-sided scan up to 70 images per minute and advanced image processing
  • 60 sheets Automatic Document Feeder (ADF)
  • Intuitive 7.1cm touchscreen
  • Auto Start Scan
  • Comprehensive software suite included2

Description

Fast, wired and wireless desktop document scanner

Simple and intuitive, offering a user-friendly touch screen combined with the option of wired and wireless connectivity. The ideal choice for shared use in an office or at home.

Specifications

Scanning
Output greyscale depth 8 bit
Optical scanning resolution 600 x 600 DPI
Colour scanning Yes
Duplex scanning Yes
Input colour depth 48 bit
Output colour depth 24 bit
ADF scan speed (b/w, A4) 35 ppm
ADF scan speed (colour, A4) 35 ppm
Duplex ADF scan speed (b/w, A4) 70 ipm
Duplex ADF scan speed (colour, A4) 70 ipm
Sensor type Dual CIS
Scan file formats JPEG, PDF, TIFF
Daily duty cycle (max) 5250 pages
Scan to E-mail Server, FTP, Image, Network folder, PC, SMB, USB
Design
Built-in display Yes
Touchscreen Yes
Scanner type ADF scanner
Display diagonal 7.11 cm (2.8")
Product colour Black, White
Colour display Yes
Control type Buttons, Touch
Performance
Sensor type Dual CIS
Scan file formats JPEG, PDF, TIFF
Daily duty cycle (max) 5250 pages
Scan to E-mail Server, FTP, Image, Network folder, PC, SMB, USB
Scan drivers SANE, TWAIN, WIA
Maximum duty cycle 105000 pages per month
Sound pressure level (max) 59 dB
Input capacity
Auto document feeder (ADF) input capacity 60 sheets
Paper handling
Scanning media types supported Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Auto Document Feeder (ADF) media weight 40 - 200 g/m²
ISO A-series sizes (A0...A9) A3, A4
Long-paper mode Yes
Card thickness (max) 1.32 mm
Ports & interfaces
USB port Yes
USB version 3.2 Gen 1 (3.1 Gen 1)
Network
Supported network protocols (IPv6) RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Mobile printing technologies Apple AirPrint, Brother Mobile Connect
Security algorithms 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi Direct Yes
Supported network protocols (IPv4) DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services (Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client
IPv6 support Yes
Software
Windows operating systems supported Windows 10, Windows 11
Mac operating systems supported Yes
Linux operating systems supported Yes
Server operating systems supported Windows Server 2016, Windows Server 2019, Windows Server 2022
Scan drivers SANE, TWAIN, WIA
Power
Auto power off Yes
Power consumption (typical) 25 W
Power consumption (standby) 2.3 W
Power consumption (off) 0.1 W
Input voltage 100 - 240 V
Power supply type DC
Power consumption (sleep) 1.7 W
Output voltage 24 V
Output current 1.9 A
AC input frequency 50/60 Hz
Weight & dimensions
Width 300 mm
Depth 630 mm
Height 290 mm
Weight 2.7 kg
Folded width 30 cm
Folded depth 15.4 cm
Folded height 15.8 cm
Package depth 243 mm
Package weight 4.5 kg
Package width 391 mm
Package height 320 mm
Packaging data
Package depth 243 mm
Package weight 4.5 kg
Package width 391 mm
Package height 320 mm
Quantity per pack 1 pc(s)
Packaging content
Quick start guide Yes
Cables included AC, USB
ADF paper chute Yes
AC adapter included Yes
Warranty card Yes
Display
Touchscreen Yes
Display diagonal 7.11 cm (2.8")
Media formats
ISO A-series sizes (A0...A9) A3, A4
Security
Cable lock slot Yes
Technical details
Mobile printing technologies Apple AirPrint, Brother Mobile Connect
Security algorithms 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS
Product dimensions when closed (WxDxH) 300 x 216 x 191 mm
Maximum media length 5 m
Custom media width 50.8 - 215.9 mm
Scanner type ADF scanner
Maximum scan resolution 1200 x 1200 DPI
Maximum duty cycle 105000 pages per month
Product colour Black, White
Supported network protocols (IPv6) RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Compliance certificates GS mark, RoHS
System requirements
Windows operating systems supported Windows 10, Windows 11
Mac operating systems supported Yes
Linux operating systems supported Yes
Server operating systems supported Windows Server 2016, Windows Server 2019, Windows Server 2022
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Other features
Product dimensions when closed (WxDxH) 300 x 216 x 191 mm
Maximum media length 5 m
Custom media width 50.8 - 215.9 mm
Cable lock slot Yes
Maximum scan resolution 1200 x 1200 DPI
Compliance certificates GS mark, RoHS
Mobile printing technologies Apple AirPrint, Brother Mobile Connect
Security algorithms 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TLS, WPA-PSK, WPA-PSK2, WPA3-SAE, WPS
Ethernet LAN Yes
Wi-Fi Yes
Scanner type ADF scanner
Quantity per pack 1 pc(s)
Logistics data
Quantity per pack 1 pc(s)
