Bixolon

Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

SKU XD5-40DOEWK/BEG
£311.44
£311.44
Only 15 left

Bixolon

Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

SKU XD5-40DOEWK/BEG
£311.44

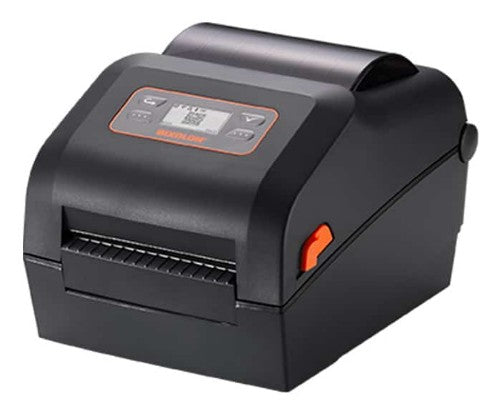

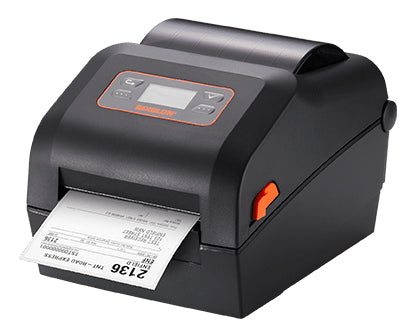

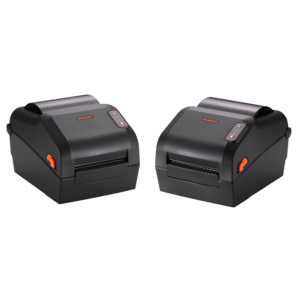

Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

Direct thermal, 203 dpi, 178 mm/s, 64 MB RAM, 128 MB FlashROM, 8 dots/mm, display, EPL, ZPLII, USB, USB Host, RS232, Ethernet, Wi-Fi, black

Description

Robust and highly featured

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

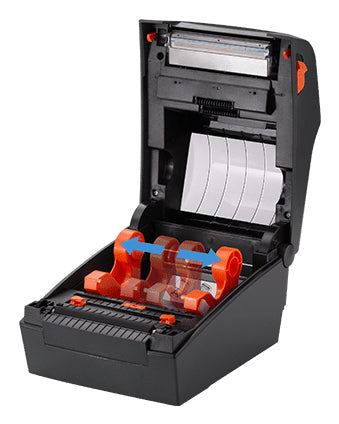

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.

Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Printing
Print speed 178 mm/sec
Maximum resolution 203 x 203 DPI
Maximum printing width 10.8 cm
Print technology Direct thermal
Maximum print length 1 m
Number of printable dots 8 dot
Display
Colour display No
Display resolution 200 x 100 pixels
Display LCD
Network
Wi-Fi Yes
Ethernet LAN Yes
Memory
Internal memory 64 MB
Flash memory 128 MB
Paper handling
Ribbon width 11 cm
Ribbon length 300 m
Media thickness 0.06 - 0.2 mm
Maximum roll diameter 12.7 cm
Maximum label width 11.8 cm
Autocutter Yes
Ports & interfaces
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
RS-232 ports 1
Connectivity technology Wired & Wireless
Wi-Fi Yes
Ethernet LAN Yes
USB port Yes
Performance
Mobile operating systems supported Android, iOS
Ribbon width 11 cm
Ribbon length 300 m
Internal memory 64 MB
Flash memory 128 MB
Character sets 5 BPL-E, 16 BPL-Z, SLCS, Unicode
Design
Colour display No
Display resolution 200 x 100 pixels
Display LCD
Product colour Black
Control type Buttons
Built-in display Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Windows operating systems supported Yes
Mac operating systems supported Yes
Product colour Black
Ribbon width 11 cm
Ribbon length 300 m
Maximum label width 11.8 cm
Character sets 5 BPL-E, 16 BPL-Z, SLCS, Unicode
Sustainability certificates ENERGY STAR
Harmonized System (HS) code 84433210
System requirements
Mobile operating systems supported Android, iOS
Linux operating systems supported Yes
Windows operating systems supported Yes
Mac operating systems supported Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
Weight & dimensions
Width 194 mm
Depth 248 mm
Height 169 mm
Weight 1.89 kg
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84433210
Other features
Character sets 5 BPL-E, 16 BPL-Z, SLCS, Unicode
